Rising stem rubter gate valye has the advantage of the hidcen rod rubber gatevalve, and can display the valve opening degree relarively direcily, Open and cosequickly and reliably, so often used in water, sewage, construction, petroleum,chemica industry, food, pharmaceudcal, textlle, eectric power, metallurgy, energysystems fluid lines as on-off devlce, usually installed at a distance above groundposition.
Applicable Medium |
Water |
Interface Size |
DN 40 - DN1200 |
Power |
Manual |
Valve Structure |
Gate Valve |
Nominal pressure |
1.6Mpa |
Place of Origin |
Tianjin, China |
Customization is supported |
OEM, ODM, OBM |
Valve Model |
Z41T-16Q |
Brand |
TF |
Warranty Period |
18 Months |
Size |
DN40-DN600 1.5 "-24" |
Pressure |
PN10 PN16 1.0MPa 1.6MPa Class150 |
Certificate |
GB BS ANSI ASME API600 |

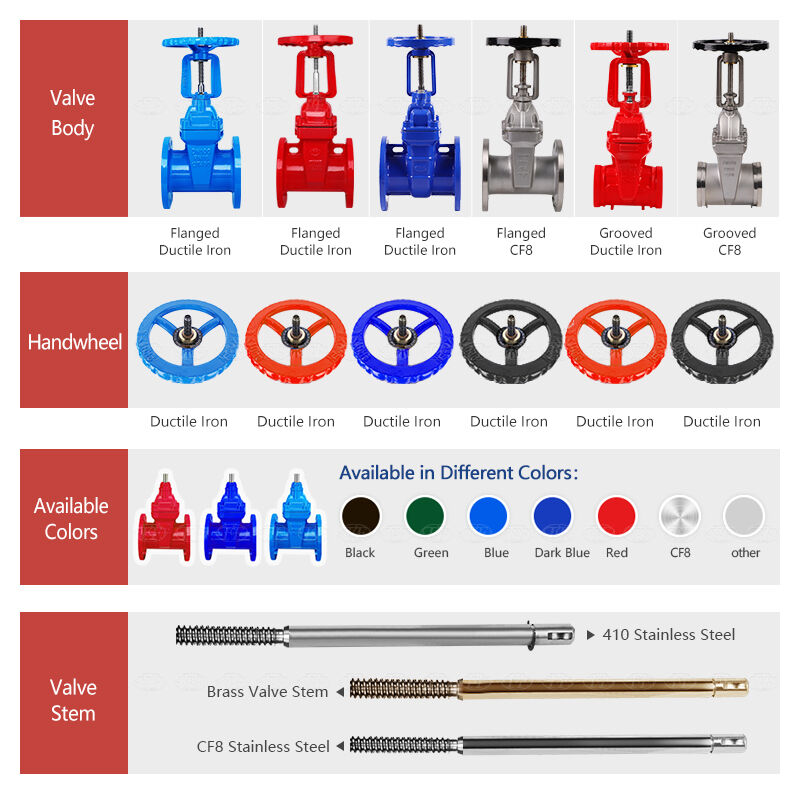

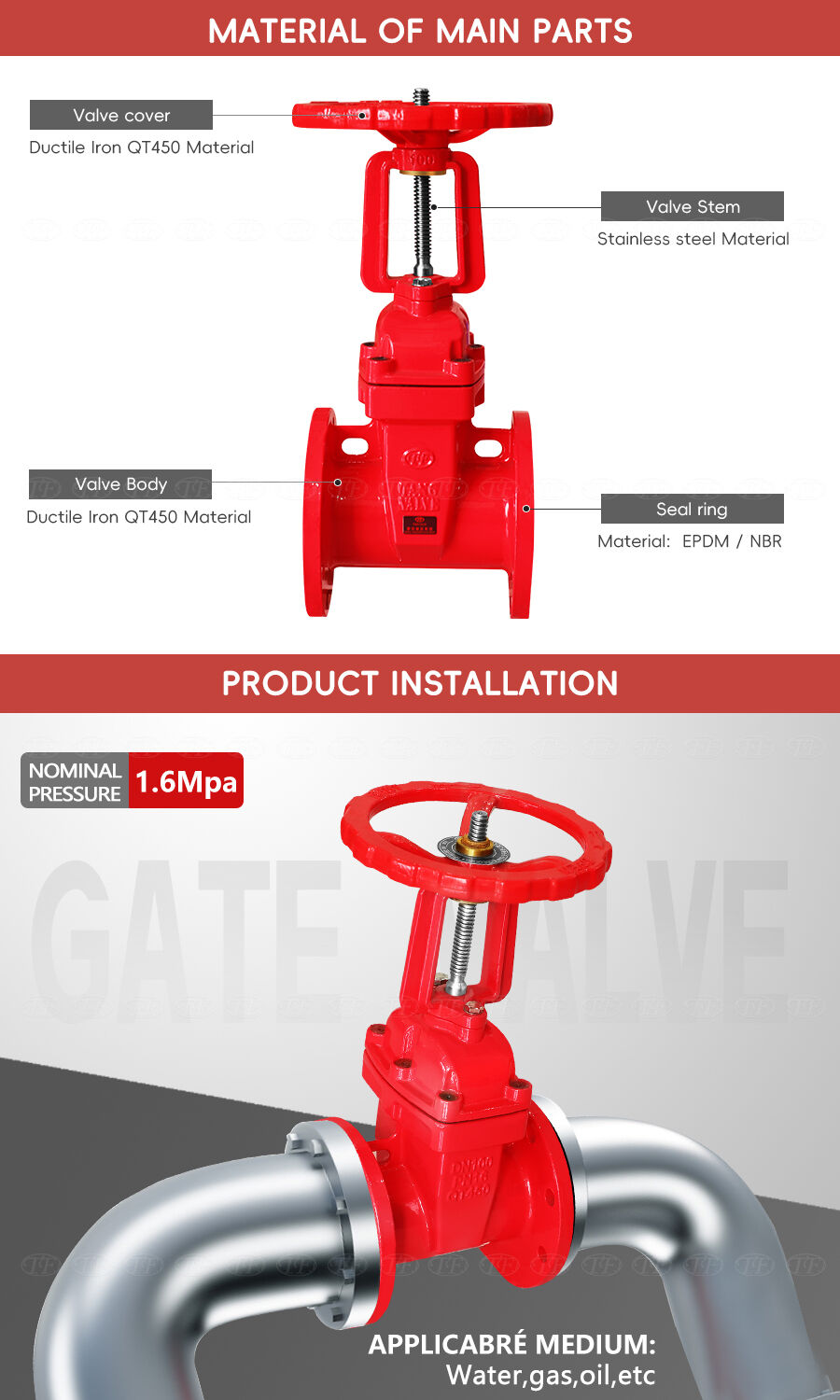

Valve Body Material |
Ductile Iron QT450 Material |
Valve Stem |
SS420 2 cr13 CF8 SS304 CF8M SS316 |
Sealing Ring |
EPDM / NBR |
Connection Structure |
Flanged End Wafer |
Seal |
Soft Seal |
Packaging and Shipping Information
Gross Weight per Unit Product |
10,000 Kilograms (or 10,000 kg) |
Package Size per Unit |
15 x 7 x 10 Centimeters (or 15×7×10 cm) |
Minimum Order Quantity：1
