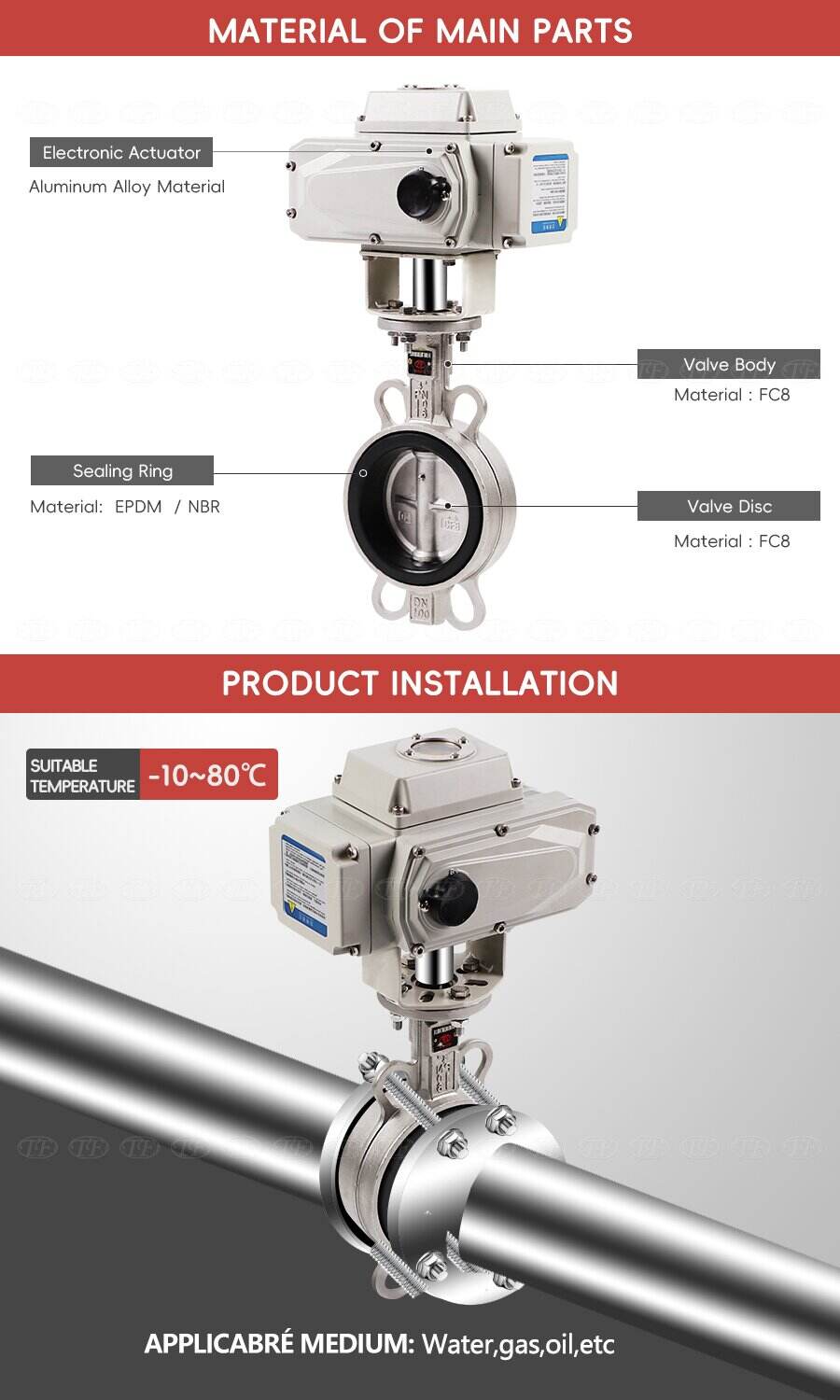

The valve body is made of high-quality stainless steel, conforming to the PN16 pressure class standard (16P), and features excellent corrosion resistance, oxidation resistance and wear resistance. It can stably adapt to acidic and alkaline media, fluids containing slight impurities, as well as working conditions of high temperature (≤150℃) and regular pressure (≤1.6MPa).
Equipped with a high-performance electric actuator, it enables 90° rotary fast opening and closing with rapid response speed and flexible, labor-saving operation. Compared with manual valves, it significantly improves control efficiency and precision. It supports remote control and program control, with minimal pressure loss during fluid passage, ensuring stable flow transmission and avoiding blockage or impurity retention.
With strong all-round adaptability, convenient maintenance and a wide range of applicable scenarios, it serves as a reliable solution for various industrial applications.
Applicable Medium |
Water |
Flowing Medium |
Water |
Interface Size |
DN40-DN600 |
Structure |
Butterfly |
Media Temperature |
Low Temperature, Medium Temperature, Normal Temperature |
Place of Origin |
Tianjin, China |
Power |
Electric |
Customization Supported |
OEM, ODM, OBM |
Brand |
TF |
Model (Number) |
D341F4-16P |
Size |
DN40-DN600 1.5 "-24" |
Warranty Period |
18 Months |
Pressure |
PN10 PN16 1.0MPa 1.6MPa Class150 |
Applicable Medium |
Water |

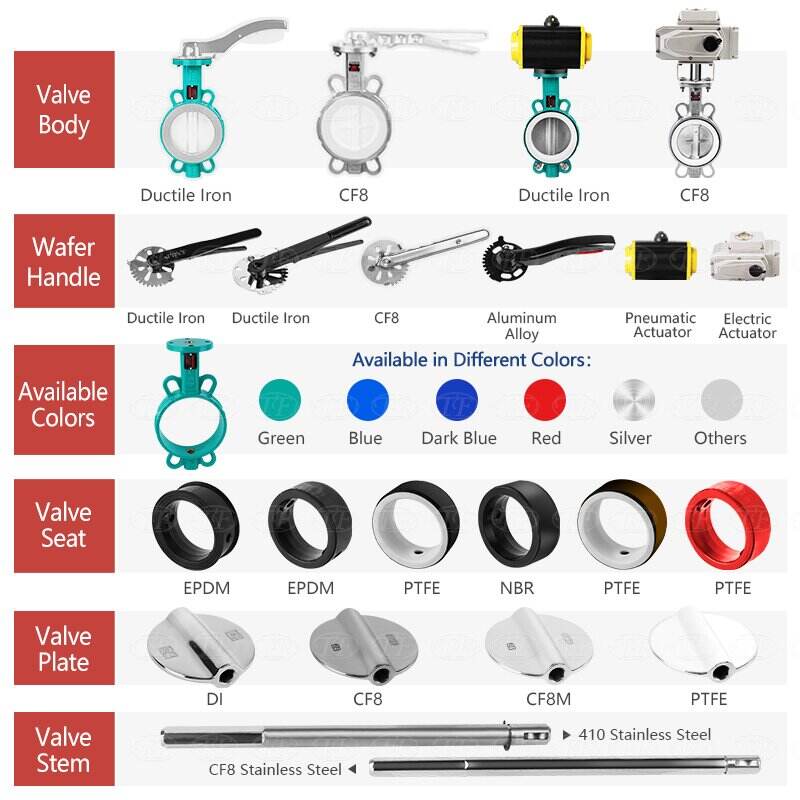

Valve Body Material |
CF8 SS304 CF8M SS316 |
Standard |
GB BS DIN ANSI ASME |
Valve Stem |
CF8 SS304 CF8M SS316 |
Disc |
CF8 SS304 CF8M SS316 |
Connection |
Flange-end Wafer |
Seat |
EPDM/ PTFE/ NBR |
medium temperature |
T<80 |
Certificate |
CE/IS09001/ISO14001/IS045001 |
Packaging and Shipping Information
Gross Weight per Unit Product |
10,000 Kilograms (or 10,000 kg) |
Package Size per Unit |
15 x 7 x 10 Centimeters (or 15×7×10 cm) |
MOQ:1
