Grooved Non-rising Stem Copper Core Protective Gate Valve Z85T-16Q

Grooved Non-rising Stem Copper Core Protective Gate Valve Z85T-16Q

Overview
Recommended Products

It adopts a non-rising stem design with the valve stem not exposed. During the valve opening and closing process, the valve stem only rotates while the gate lifts inside the valve body, resulting in a small overall height and making it suitable for space-constrained locations. Its sealing surface features a copper core, which offers excellent wear resistance and corrosion resistance, effectively ensuring the valve's sealing performance. It uses grooved connection, where the valve and pipeline are connected via clamps, boasting advantages such as quick, easy, safe and reliable installation. Free from installation site restrictions, it facilitates the maintenance of pipelines and valves. It can also compensate for misalignment caused by coaxiality deviations of pipeline connections within a certain angle range and resolve thermal expansion and contraction issues arising from temperature differences. The main body is made of ductile iron, with common nominal diameters including DN50, DN65, DN80, DN100 and other specifications. It is applicable to water as the medium, normally adopts manual actuation, features a hard-sealed structure, and works at room temperature. Widely used in pipeline projects such as water supply and drainage, fire protection, air conditioning, gas, petroleum, chemical industry, water treatment, municipal engineering and shipbuilding for fluid transportation, it serves as a shut-off or regulating device for fluid control.


Applicable Medium	Water	Flowing Medium	Acid,Base
Interface Size	DN50-DN300	Structure	Gate Valve
Media Temperature	Low Temperature, Medium Temperature, Normal Temperature	Place of Origin	Tianjin, China
Working Temperature	0~80°C	Customization Supported	OEM, ODM
Brand	TF	Model (Number)	Z85T-16Q
Connection method	Clamp connection	Warranty Period	18 Months

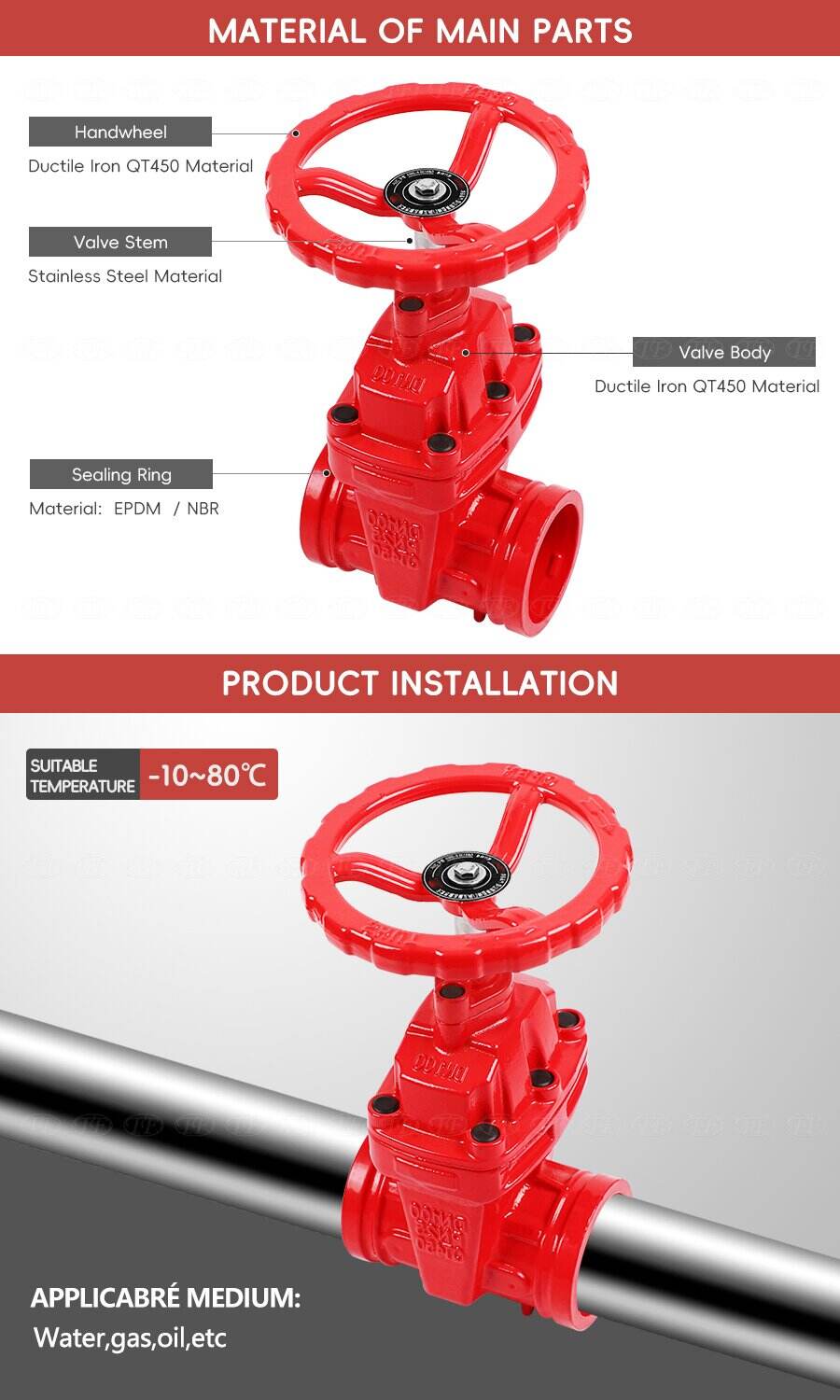

Valve body material	Ductile Iron	Operation	Manual
Valve Stem	CF8 SS304 CF8M	Standard or Nonstandard	custom
Connectio	Grooved End	Disc	EPDM
