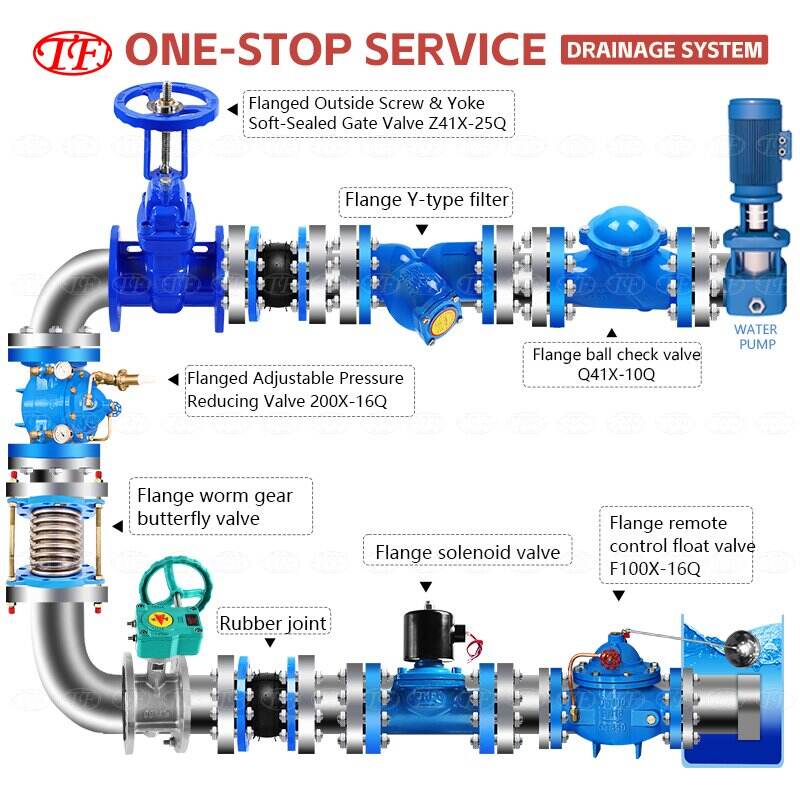

Flanged OS&Y Soft-sealed Gate Valve Z41X-25Q features core advantages of zero-leakage sealing, visual operation, durability & corrosion resistance and high-pressure adaptability. It also boasts excellent flow capacity, easy installation and high cost performance, and can accurately meet the requirements of various working conditions such as medium and high-pressure water supply and drainage, industrial circulating water and municipal pipe networks. It is a universal valve product with reliable performance, worry-free operation and controllable cost.
Applicable Medium |
Water |
Flowing Medium |
water |
Interface Size |
DN50-DN300 |
Structure |
Gate Valve |
Media Temperature |
Low Temperature, Medium Temperature, Normal Temperature |
Place of Origin |
Tianjin, China |
/ |
/ |
Customization Supported |
OEM, ODM, OBM |
Brand |
TF |
Model (Number) |
Z41X-25Q |
temperature |
-40℃-120℃ |
Warranty Period |
18 Months |
Nominal Pressure |
PN16 PN25 1.6MPa 2.5MPa Class150 |
Applicable Medium |
water |

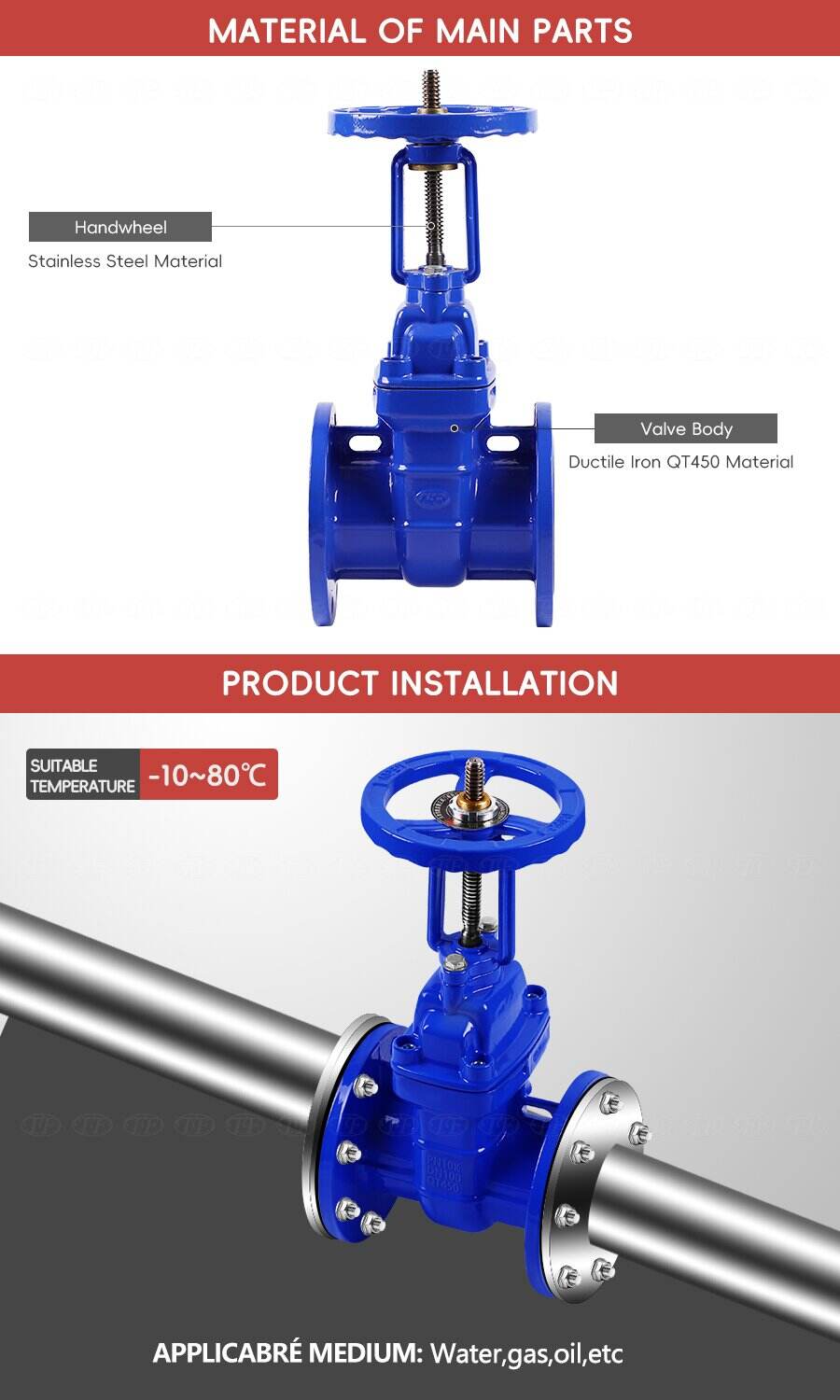

Valve Body Material |
Ductile Iron QT450 Material |
Standard |
Ductile Iron QT450 Material |

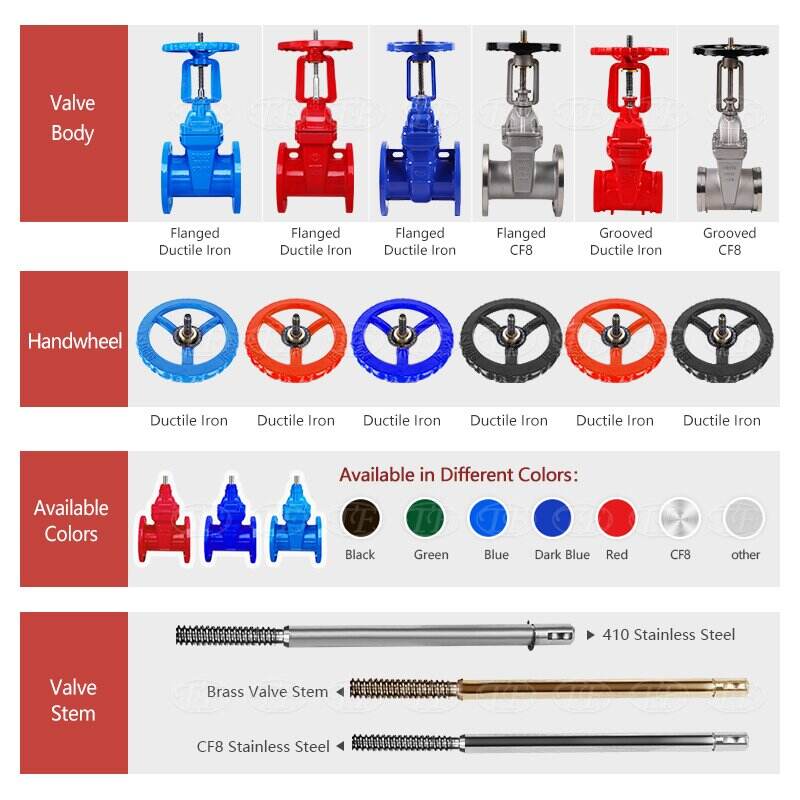

Valve Stem |
SS420 2 cr13/CF8 SS304 CF8M SS316 |
Disc |
EPDM |
Connectio |
Flanged End |
Seat |
DN50-DN300 |
Nominal Pressure |
1.6MPa |
/ |
/ |
Packaging and Shipping Information
Gross Weight per Unit Product |
10,000 Kilograms (or 10,000 kg) |
Package Size per Unit |
15 x 7 x 10 Centimeters (or 15×7×10 cm) |
MOQ:1
