Magnetic Encrypted Flange Non-Rising Stem Soft-Sealed Gate Valve Z45X-10Q

Magnetic Encrypted Flange Non-Rising Stem Soft-Sealed Gate Valve Z45X-10Q

Overview
Recommended Products

Magnetically Encrypted Flanged Non-Rising Stem Resilient Seated Gate Valve Z45X-10Q — the first choice for safe sealing and precise control.Equipped with magnetic encryption anti-theft function, it maintains uncompromising safety control. Operated by exclusive magnetic coded keys, it cannot be opened or closed by unauthorized personnel, completely eliminating hidden risks such as medium theft and illegal operation. The magnetic circuit coding is precisely customized with an extremely low key mutual opening rate, and each unit has an independent code for enhanced safety.The lockless sealed design prevents foreign matter blockage and malicious damage, ideal for strictly controlled scenarios like tap water terminals, oilfield oil transportation, and heating systems, significantly reducing management costs.The non-rising stem design eliminates stem expansion and contraction, keeping the overall valve height constant, saving 20%-30% installation space, and perfectly adapting to space-constrained areas such as pipe wells, underground pipe networks and equipment-dense zones.


Applicable Medium	Water	Flowing Medium	Water
Interface Size	DN50-DN200	Structure	Gate Valve
Media Temperature	Low Temperature, Medium Temperature, Normal Temperature	Place of Origin	Tianjin, China
Structure	Magnetic Lock Gate Valve	Customization Supported	OEM, ODM, OBM
Brand	TF	Model (Number)	/
medium temperature	T<80	Warranty Period	18 Months
Nominal Pressure	1.0MPa	Applicable Medium	Water

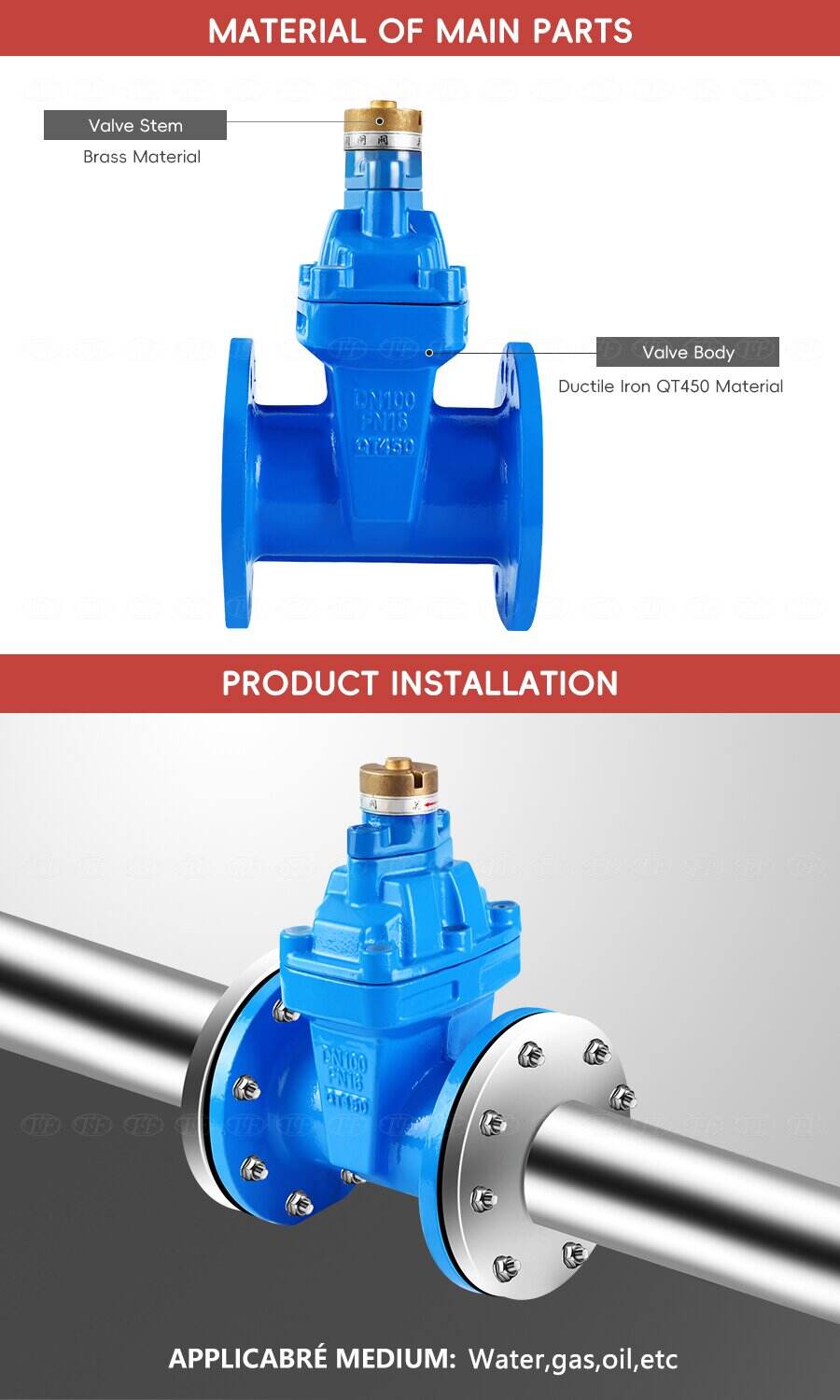

Valve Body Material	Ductile Iron QT450 Material	Standard	Ductile Iron QT450 Material

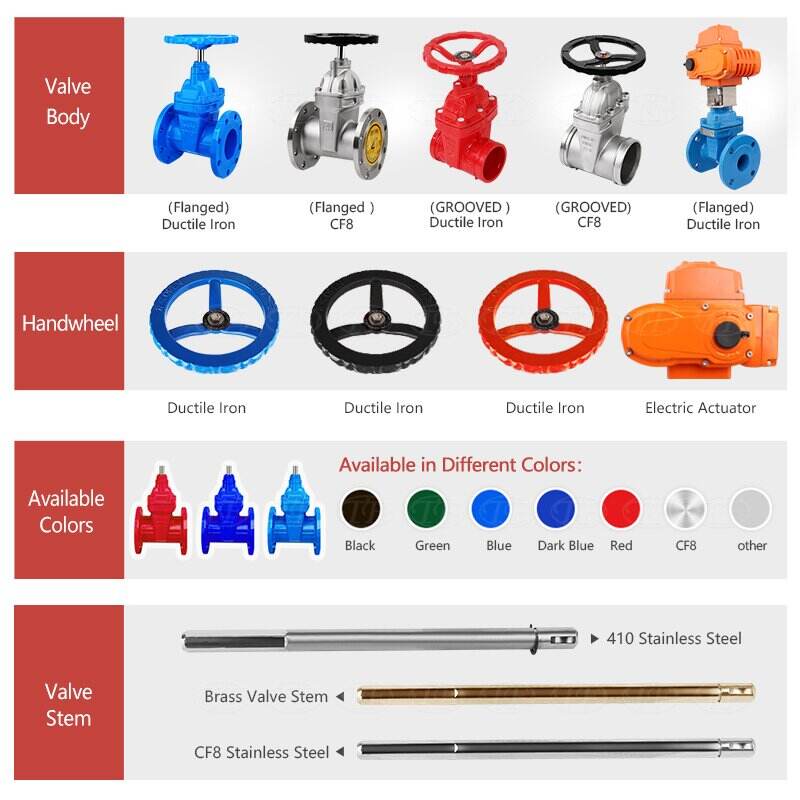

Valve Stem	CF8 SS304 CF8M SS316	Disc	CF8 SS304 CF8M SS316
Connectio	Flange / Groove / Thread	Seat	DN50-DN200
		Certificate	CE IS09001 ISO14001 IS045001
