Adopting a wafer-type structure design, it is compact in size and light in weight. Compared with traditional flanged butterfly valves, it occupies less installation space. It is equipped with a high-quality elastic valve seat (available in various materials such as EPDM and PTFE), which fits precisely with the butterfly disc, delivering excellent sealing performance that achieves zero or micro leakage, effectively preventing medium waste and environmental pollution.
Applicable Medium |
Water |
Flowing Medium |
Water |
Interface Size |
DN50-DN600 |
Structure |
Butterfly |
Media Temperature |
Low Temperature, Medium Temperature, Normal Temperature |
Place of Origin |
Tianjin, China |
Power |
Manual |
Customization Supported |
OEM, ODM, OBM |
Brand |
TF |
Model (Number) |
D341X-10/16 |
Pressure |
PN10 PN16 PN25 1.0MPa 1.6MPa Class150 |
Warranty Period |
18 Months |

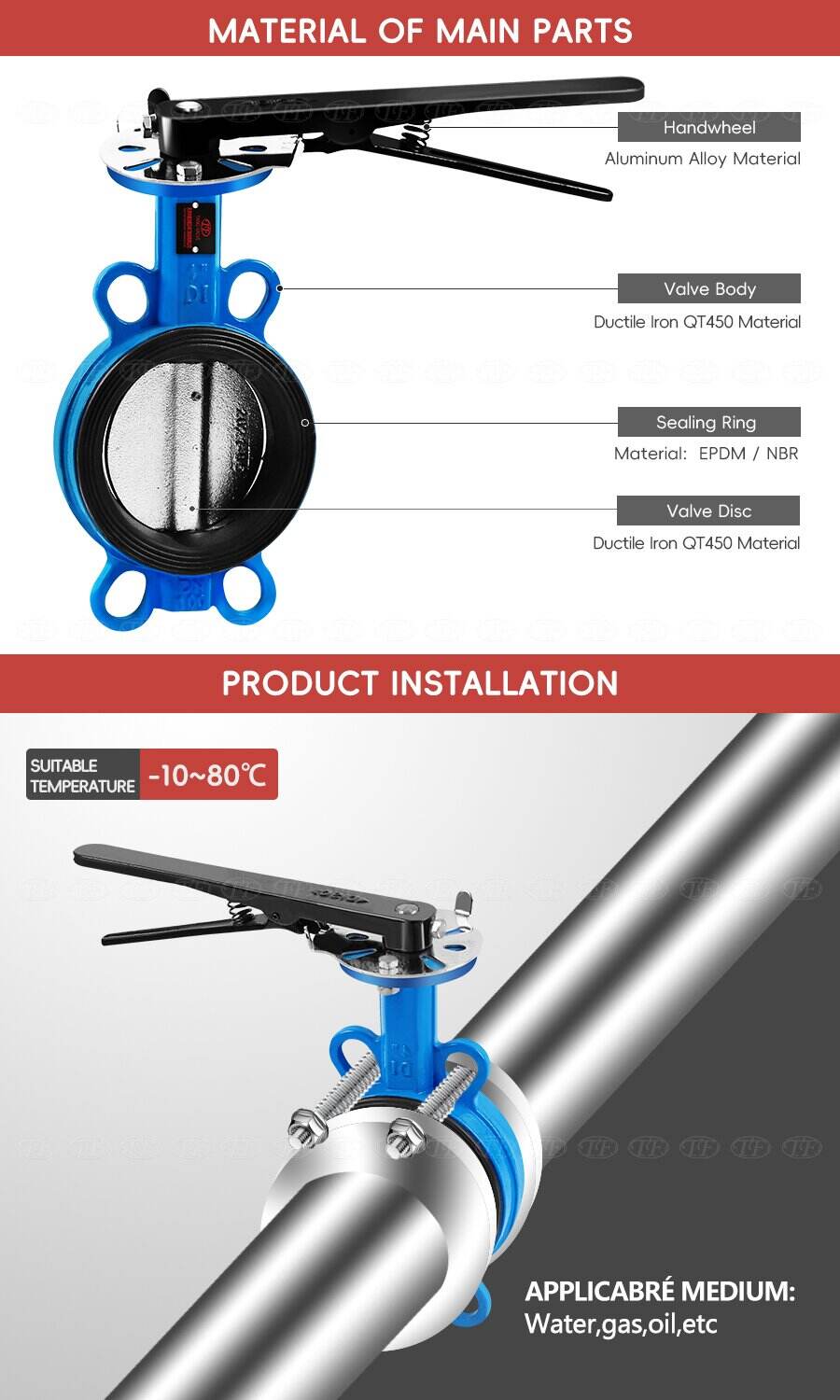

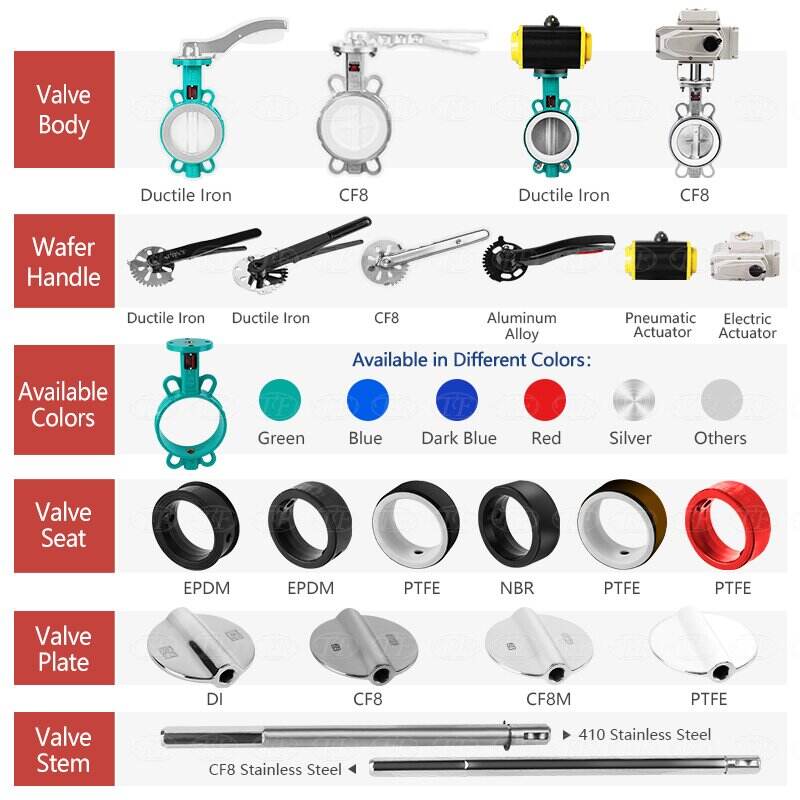

Valve Body Material |
Ductile Iron QT450 Material |
Applicable Medium |
Water |
Valve Stem |
SS420 2cr13 CF8 SS304 CF8M SS316 |
Standard |
GB BS ANSI ASME API600 |
Connection |
Flanged End |
Disc |
EPDM/ PTFE/ NBR |
pressure |
1.6MPa |
Certificate |
CE/IS09001/ISO14001/IS045001 |
Color |
blue |
Medium Temperature |
T<80 |
Packaging and Shipping Information
Gross Weight per Unit Product |
10,000 Kilograms (or 10,000 kg) |
Package Size per Unit |
15 x 7 x 10 Centimeters (or 15×7×10 cm) |
MOQ:1
