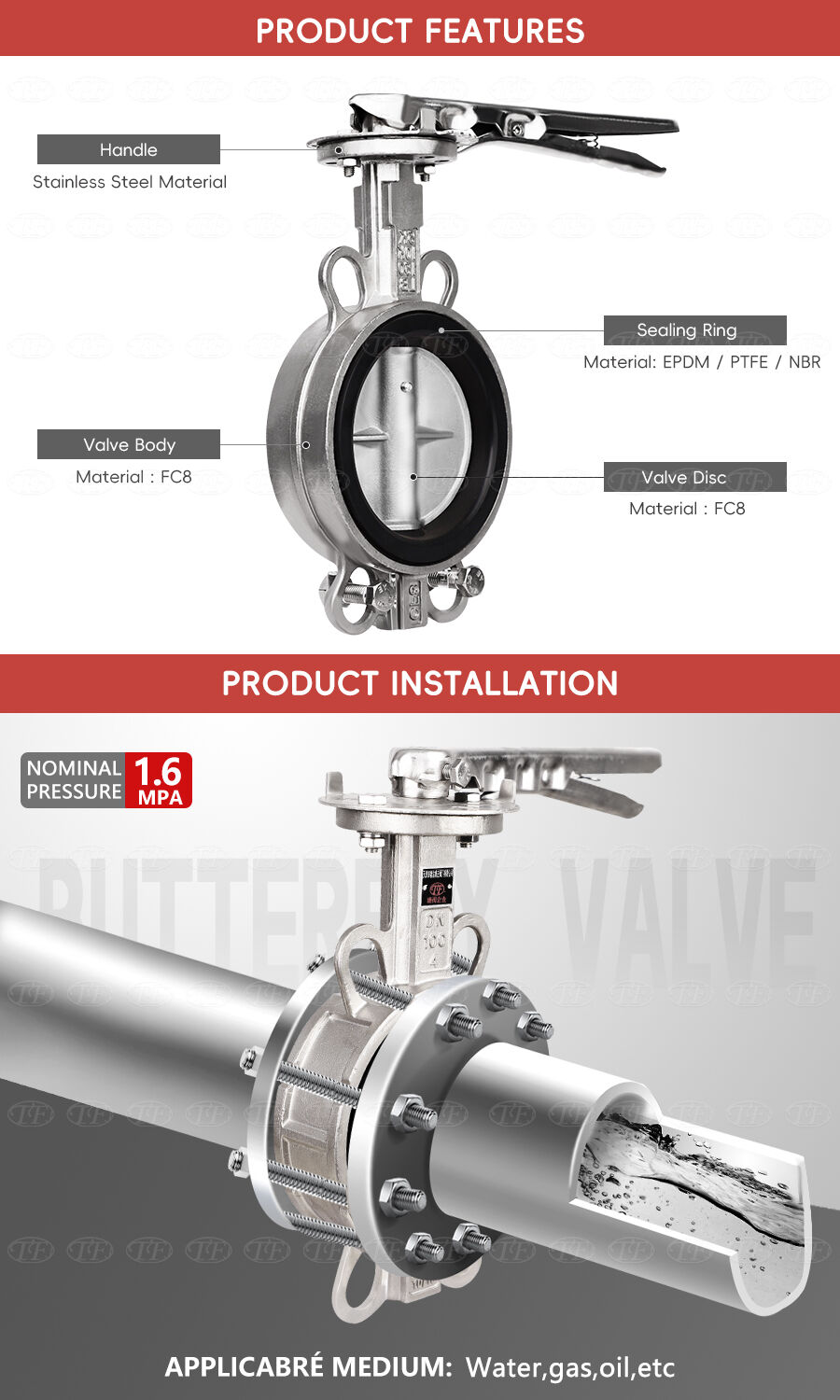

This butterfly valve uses 304 stainless steel as its core material, which serves as the key underpinning of its advantages. These advantages are mainly reflected in its corrosion resistance and high strength. The "wafer-style" structure is a prominent design feature of this butterfly valve. When the butterfly valve is fully open, the disc assumes a streamlined shape, resulting in low resistance and low pressure loss when the medium flows through. This not only reduces the energy consumption of equipment but also significantly lowers the operating costs.
Applicable Medium |
Water |
Flowing Medium |
Water |
Interface Size |
DN40-DN600 |
Structure |
Butterfly |
Medium Temperature |
Low Temperature, Medium Temperature, Normal Temperature |
Place of Origin |
Tianjin, China |
Application |
/ |
Customization Supported |
OEM, ODM, OBM |
Power |
Manual |
Model (Number) |
D71X-10/16P |
Brand |
TF |
Warranty Period |
18 Months |
Size |
DN40-DN600 1.5 "-24" |
Applicable Medium |
Water |
Pressure |
PN10 PN16 PN25 1.0MPa 1.6MPa Class150 |
Standard |
GB BS DIN ANSI ASME |

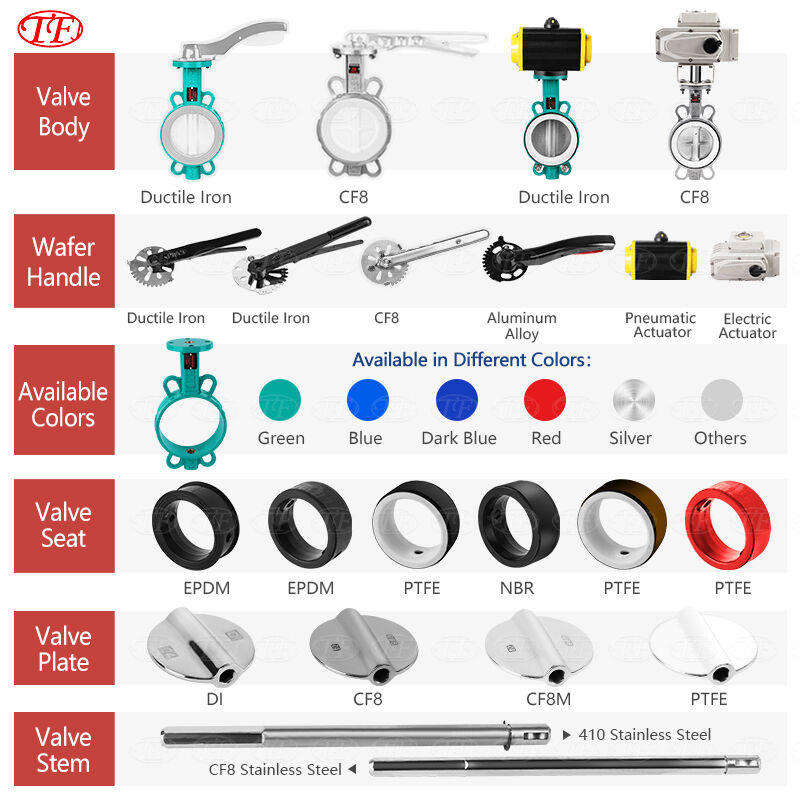

Valve Body Material |
CF8 SS304 CF8M SS316 |
Disc |
CF8 SS304 CF8M SS316 |
Valve Stem |
CF8 SS304 CF8M SS316 |
Seat |
EPDM PTFE NBR |
Connection |
Flanged End Wafer |
Certificate |
CE IS09001 ISO14001 IS045001 |
Packaging and Shipping Information
Gross Weight per Unit Product |
10,000 Kilograms (or 10,000 kg) |
Package Size per Unit |
15 x 7 x 10 Centimeters (or 15×7×10 cm) |
Minimum Order Quantity：1
