The resilient-seated gate valve adopts a special rubber fully-wrapped integral elastic valve core structure. Compared with ordinary gate valves, it is free from issues such as water leakage or rust. It overcomes the common defects of ordinary gate valves, including poor sealing, elastic fatigue, rubber aging, and wear and rust of the sealing pair. By making full use of the compensation effect of micro-deformation generated by the elastic seal, it achieves an excellent sealing performance. It can be widely used as a regulating and intercepting device in fluid pipelines of water supply, petrochemical, metallurgy, shipbuilding, food and pharmaceutical, and energy systems.
Applicable Medium |
Water |
Interface Size |
DN 40 - DN1200 |
Power |
Manual |
Valve Structure |
Gate Valve |
Medium Temperature |
-10℃~80℃ |
Place of Origin |
Tianjin, China |
Customization is supported |
OEM, ODM, OBM |
Valve Model |
Z45X |
Brand |
TF |
Warranty Period |
18 Months |
Size |
DN40-DN1200 1.5"-48" |
Pressure |
PN10 PN16 1.0MPa1.6MPa Class150 |
Certificate |
CE IS09001 ISO14001 IS045001 |

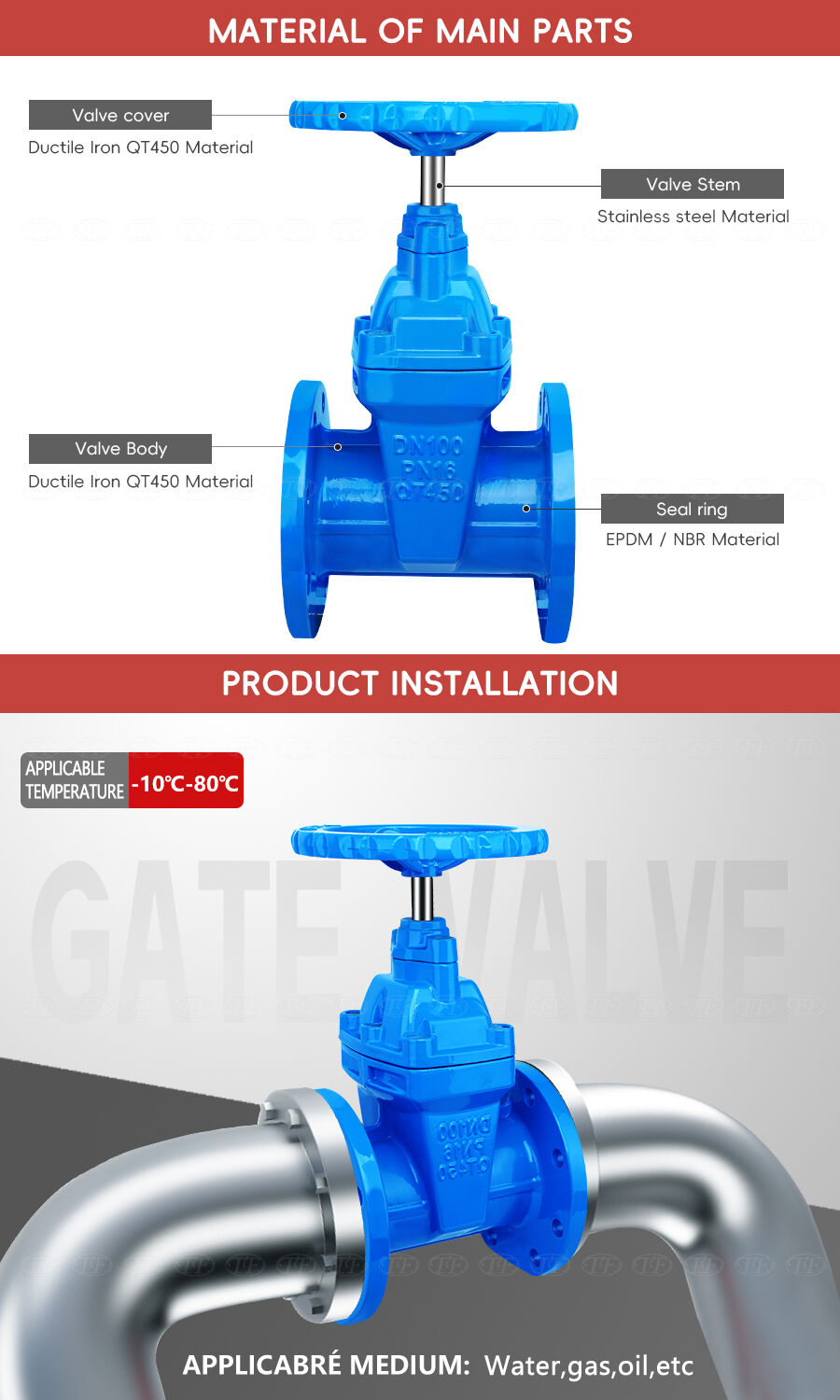

Valve Body Material |
Ductile Iron QT450 Material |
Valve Stem |
Stainless Steel Material |
Sealing Ring |
EPDM / NBR |
Connection Structure |
Flanged End Wafer |
Seal |
Soft Seal |
Packaging and Shipping Information
Gross Weight per Unit Product |
10,000 Kilograms (or 10,000 kg) |
Package Size per Unit |
15 x 7 x 10 Centimeters (or 15×7×10 cm) |
Minimum Order Quantity：1
