The valve body is precision-cast from high-quality cast steel (such as WCB, WC6, etc.), featuring enhanced pressure resistance, corrosion resistance and high-temperature resistance. It can withstand a pressure rating of PN1.0~2.5MPa and adapt to a wide temperature range of -10℃~600℃. Capable of stably handling water, oil, gas, high-temperature steam and various weakly corrosive media, it is widely applicable to harsh industrial scenarios including petroleum, chemical engineering, electric power and metallurgy.Adopting a unique lug-type design, the protruding lugs with bolt holes on both sides of the valve body can be directly connected to pipeline flanges by bolts passing through. This eliminates the need for independent flange components of traditional flange valves, which not only simplifies the installation process but also reduces the usage of bolts and cuts down installation costs.
Applicable Medium |
Water |
Flowing Medium |
Water |
Interface Size |
DN40-DN600 |
Structure |
Butterfly |
Media Temperature |
Low Temperature, Medium Temperature, Normal Temperature |
Place of Origin |
Tianjin, China |
Power |
Manual |
Customization Supported |
OEM, ODM, OBM |
Brand |
TF |
Model (Number) |
/ |
Pressure |
PN10 PN16 PN25 1.0MPa 1.6MPa Class150 |
Warranty Period |
18 Months |

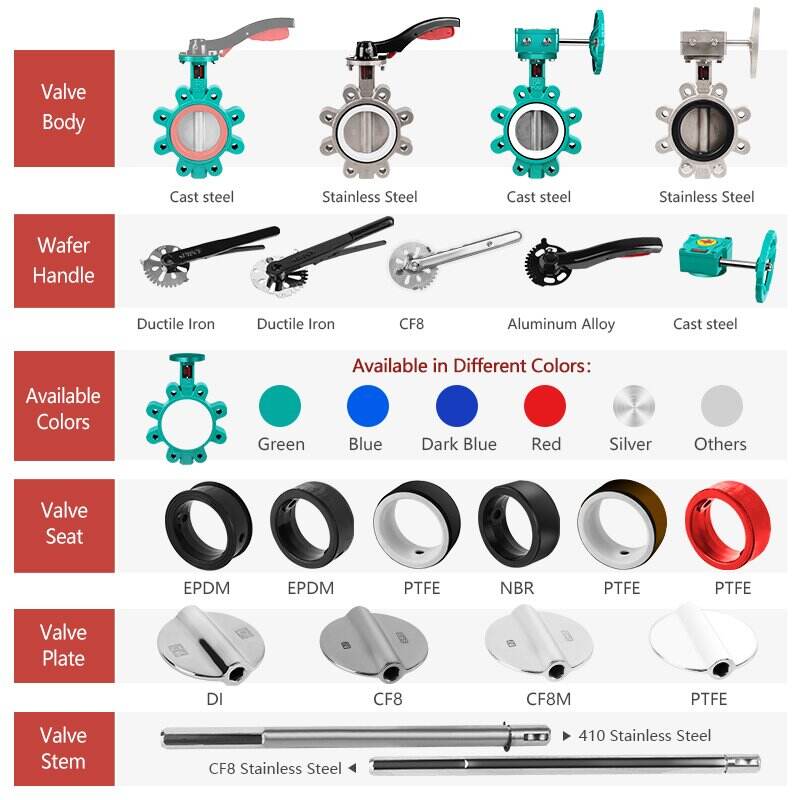

Valve Body Material |
Cast Steel |
Applicable Medium |
Water |
Valve Stem |
CF8 SS304 CF8M SS316 |
Standard |
GB BS ANSI ASME API600 |
Connection |
Flange-end Wafer |
Disc |
CF8 SS304 CF8M SS316 |
Sealing Ring |
PTFE |
Certificate |
CE/IS09001/ISO14001/IS045001 |
Connection |
Flange-end Lug Type |
size |
DN40-DN600 1.5 "-24" |
Packaging and Shipping Information
Gross Weight per Unit Product |
10,000 Kilograms (or 10,000 kg) |
Package Size per Unit |
15 x 7 x 10 Centimeters (or 15×7×10 cm) |
MOQ:1
