The Flange Non-rising Stem Gate Valve with Position Indicator (Soft Seal) Model Z45X-16Q features a structural highlight of "non-rising stem for space-saving + precise position indication", a performance core of "soft seal for zero leakage + durable material", and operational advantages of "effort-saving operation + convenient maintenance". The "soft seal" characteristic is what distinguishes it from hard-seal gate valves. It adopts elastic materials such as rubber (e.g., EPDM, NBR) for sealing, while balancing broad-spectrum adaptability under 1.6MPa pressure with economic cost-effectiveness. Perfectly reconciling "performance reliability" and "engineering practicality", it is the preferred valve solution for medium and small-caliber fluid control scenarios.
Applicable Medium |
Water |
Interface Size |
DN50-DN300 |
Power |
Manual |
Valve Structure |
Gate Valve |
Medium Temperature |
T<80℃ |
Place of Origin |
Tianjin, China |
Customization is supported |
OEM, ODM, OBM |
Valve Model |
Z45X-16Q |
Brand |
TF |
Warranty Period |
18 Months |
Certificate |
CE IS09001 ISO14001 IS045001 |

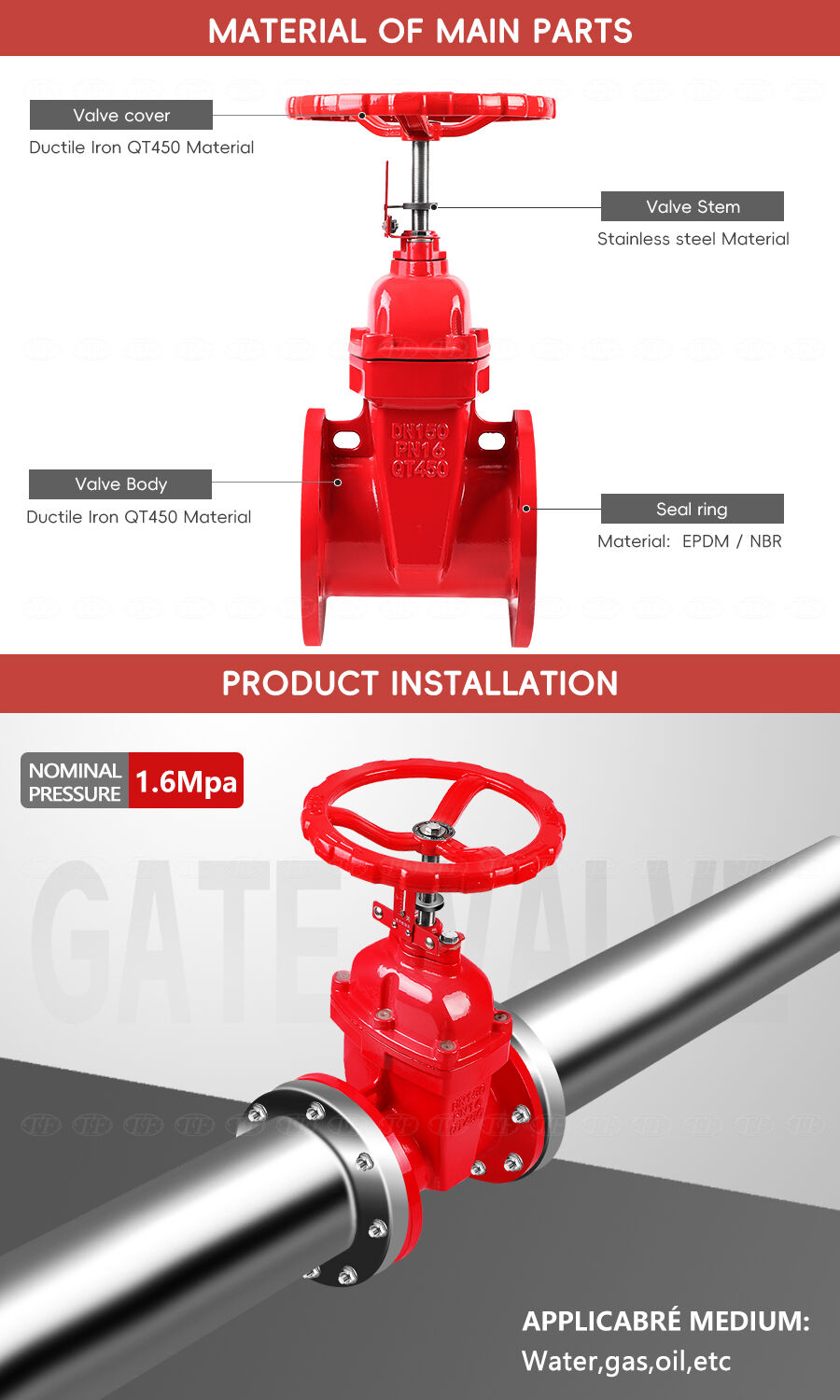

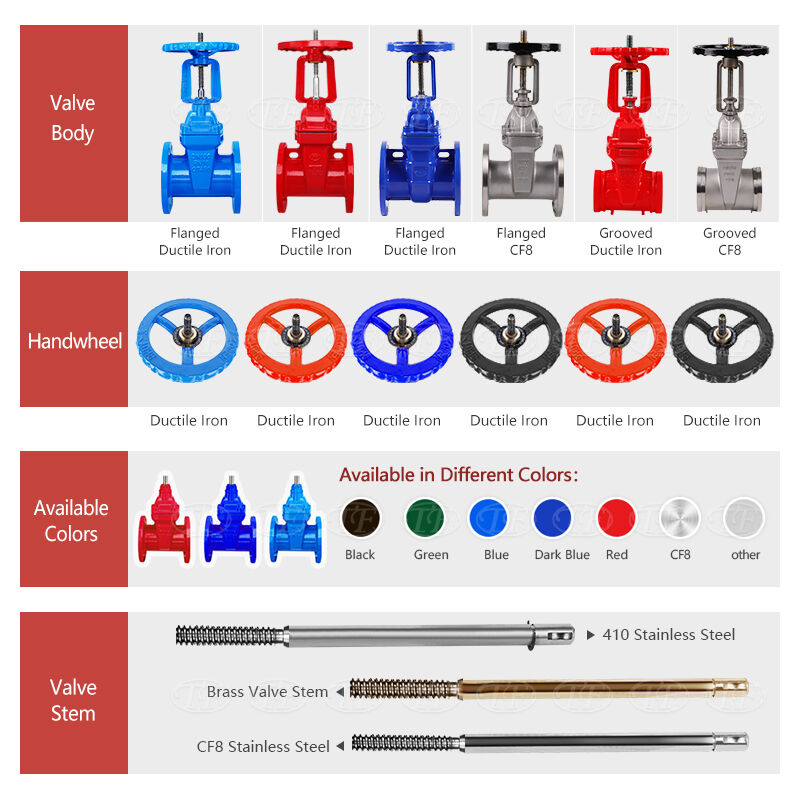

Valve Body Material |
Ductile Iron QT450 Material |
Valve Stem |
Stainless Steel Material |
Sealing Ring |
EPDM / NBR |
Connection Structure |
Flanged End Wafer |
Seal |
Soft Seal |
|
|
|
|
Packaging and Shipping Information
Gross Weight per Unit Product |
10,000 Kilograms (or 10,000 kg) |
Package Size per Unit |
15 x 7 x 10 Centimeters (or 15×7×10 cm) |
Minimum Order Quantity：1
