It adopts a standardized grooved connection design, eliminating the need for welding or flange bolt fastening. Quick butt-joint installation can be achieved simply with matching grooved pipe fittings, which greatly shortens the construction period and reduces manual installation costs.
High Pressure Rating Guarantee: With a rated pressure of 25Q (2.5MPa), it far exceeds conventional low-pressure butterfly valves. It can stably adapt to medium and high-pressure working conditions such as industrial circulating water, fire water supply, and municipal high-pressure pipe networks, featuring strong pressure-bearing capacity and high operational safety factor.
Premium Material Selection: The valve body is made of ductile iron (Q), which has high strength, good toughness, and excellent resistance to impact and deformation. It also boasts outstanding wear resistance, acid and alkali resistance, and temperature resistance (suitable temperature range: -10℃~120℃), making it compatible with various media.
Equipped with a precision worm gear transmission mechanism, it delivers high transmission efficiency and realizes the function of "controlling large-diameter valves with small torque", enabling labor-saving and convenient manual operation.
The valve body is manufactured via an integrated casting process, free from defects such as sand holes and cracks. It has uniform structural strength and can withstand complex working conditions like pipeline vibration and medium impact. The worm gear transmission mechanism has passed rigorous wear resistance and pressure resistance tests, ensuring stable operation without jamming.
Applicable Medium |
Water |
Flowing Medium |
Water |
Interface Size |
DN50-DN300 |
Structure |
Butterfly |
Media Temperature |
Low Temperature, Medium Temperature, Normal Temperature |
Place of Origin |
Tianjin, China |
Power |
Manual |
Customization Supported |
OEM, ODM, OBM |
Brand |
TF |
Model (Number) |
SFD81X-25Q |
Medium Temperature |
T<80 |
Warranty Period |
18 Months |
Pressure |
PN10 PN16 1.0MPa 1.6MPa Class150 |
Applicable Medium |
Water |

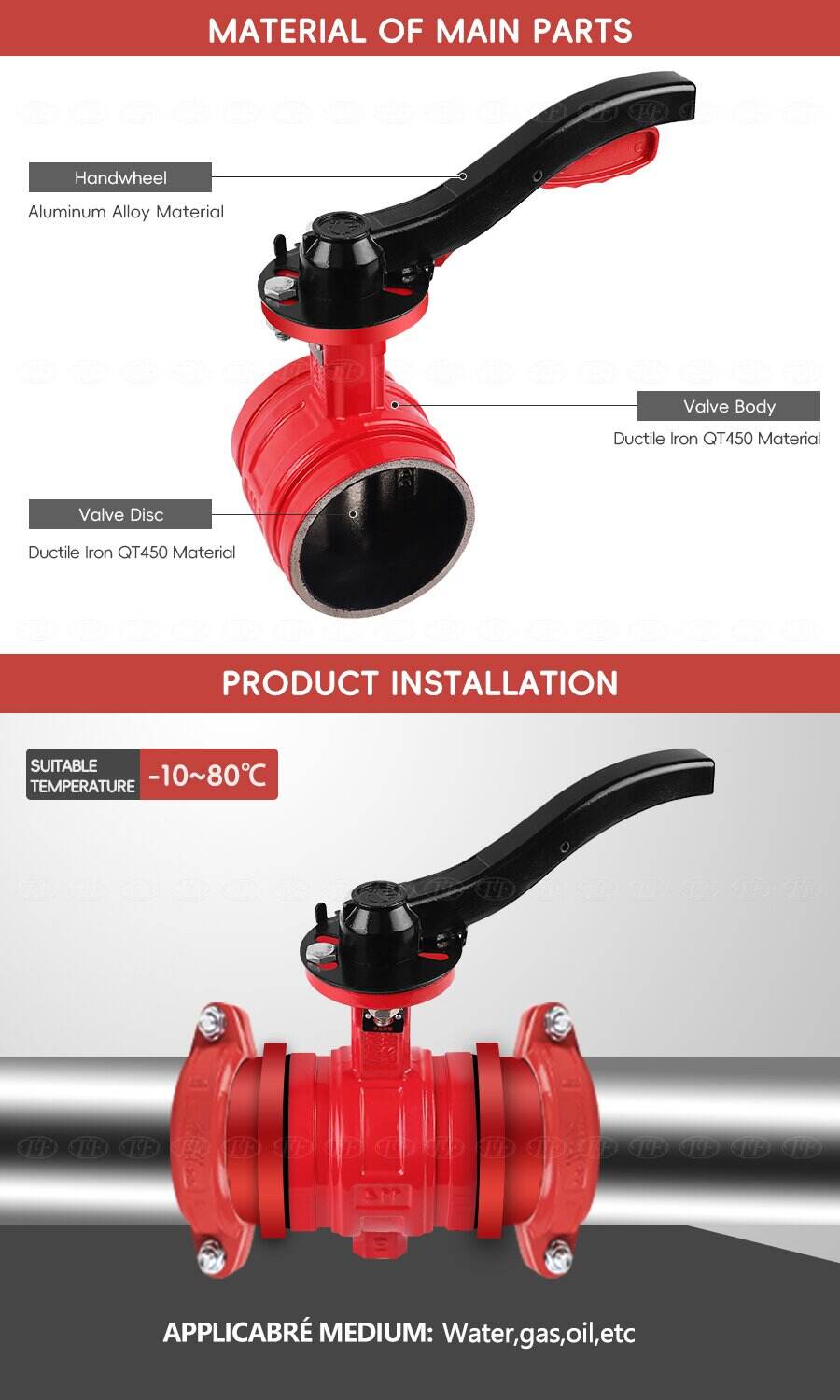

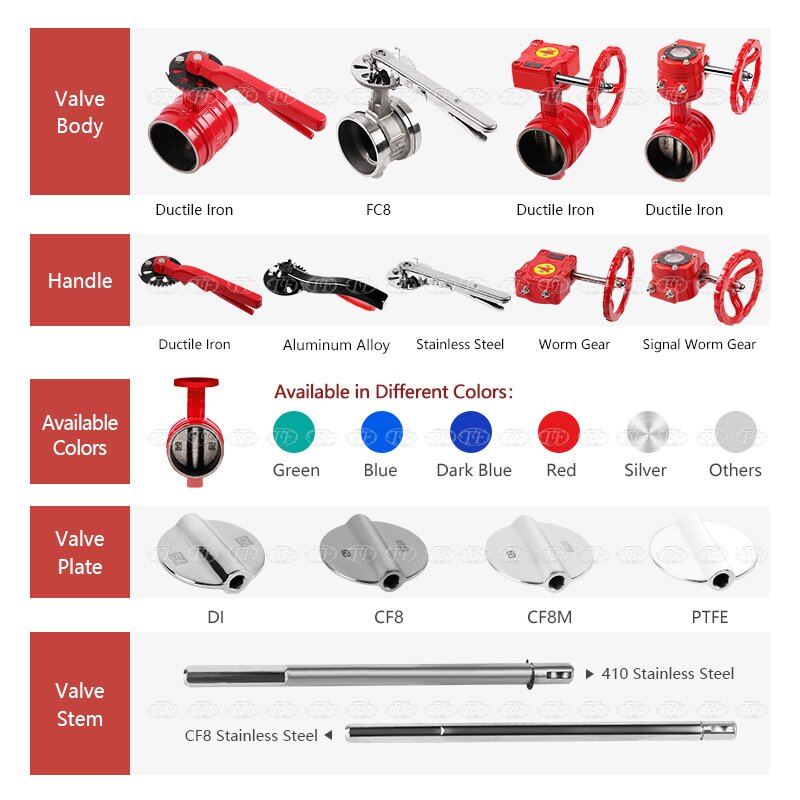

Valve Body Material |
Ductile Iron QT450 Material |
Standard |
GB BS DIN ANSI ASME |
Valve Stem |
SS420 2cr13 CF8 SS304 CF8M SS316 |
Disc |
韧性lron CF8 SS304 CF8M SS316 |
Connection |
Grooved End |
Certificate |
CE/IS09001/ISO14001/ IS045001 |
pressure |
2.5MPa |
Size |
DN50-DN300 2 "-12" |
Packaging and Shipping Information
Gross Weight per Unit Product |
10,000 Kilograms (or 10,000 kg) |
Package Size per Unit |
15 x 7 x 10 Centimeters (or 15×7×10 cm) |
MOQ：1
