Ductile Iron Worm Gear Drive Wafer Butterfly Valve EPDM Green D371X-20Q

Ductile Iron Worm Gear Drive Wafer Butterfly Valve EPDM Green D371X-20Q

Overview
Recommended Products

The wafer-style butterfly valve (Model: D71X-16Q) features a simple structure, compact size, and light weight, consisting of only a few components. Moreover, it can be quickly opened or closed with a 90-degree rotation, enabling easy operation. Meanwhile, this valve exhibits excellent fluid control performance. When the butterfly valve is fully open, the thickness of the butterfly disc is the only resistance to the medium flowing through the valve body. As a result, the pressure drop generated by the medium passing through the valve is minimal, giving the valve good flow control characteristics.Butterfly valves are available in two sealing types: elastic sealing and metal sealing. For elastic-sealed valves, the sealing ring can be embedded in the valve body or attached to the periphery of the butterfly disc. This type of valve is widely used in numerous industries such as water supply and drainage, electric power, chemical engineering, food processing, and pharmaceutical manufacturing.


Applicable Medium	Water	Flowing Medium	Water
Interface Size	DN40-1200	Structure	Butterfly
Medium Temperature	Low Temperature, Medium Temperature, Normal Temperature	Place of Origin	Tianjin, China
Application	Chemical Industry Environmental Protection & Water Treatment Pharmaceutical Industry Food Industry	Customization Supported	OEM, ODM, OBM
Power	Manual	Model (Number)	D71X-16Q
Brand	TF	Warranty Period	18 Months

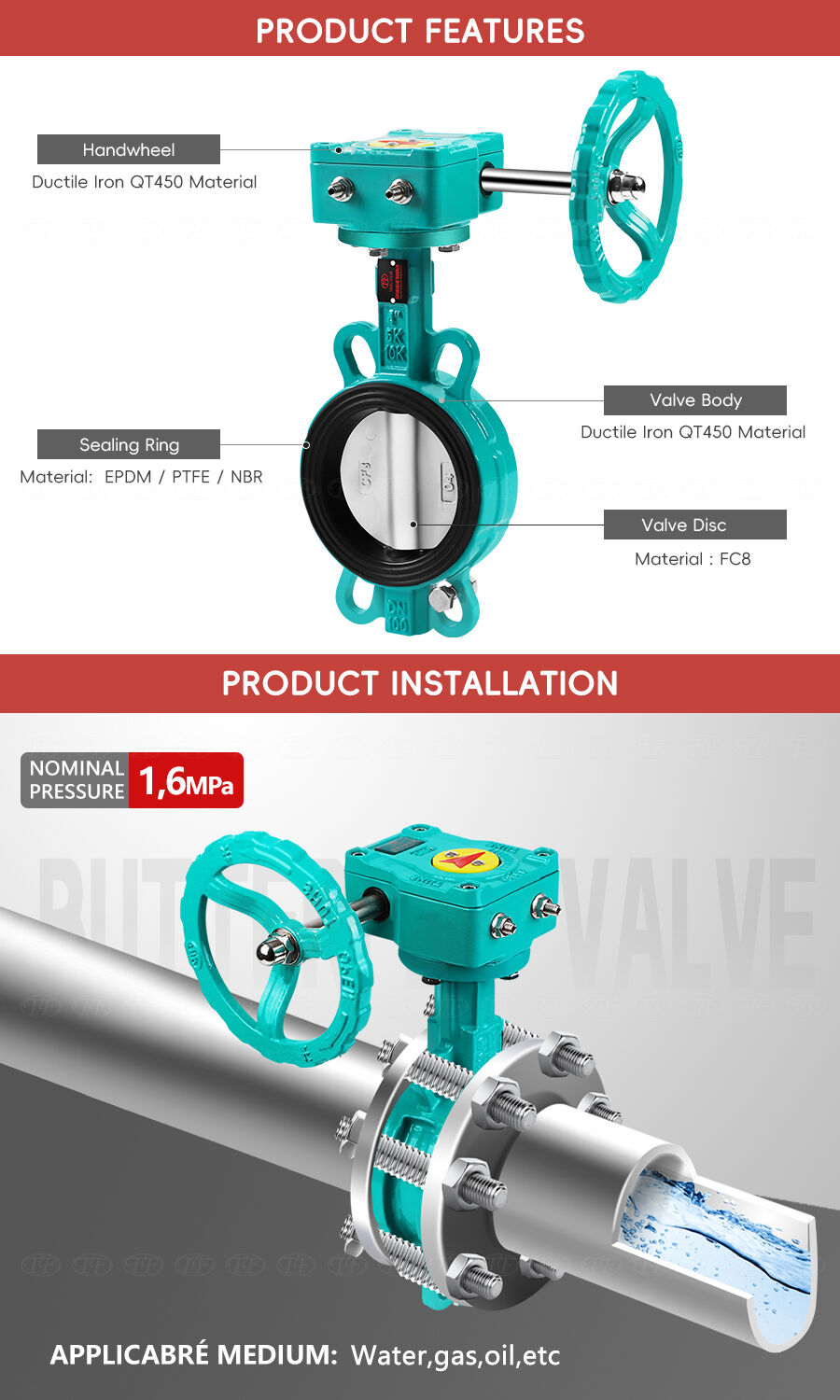

Medium Temperature	80°C	Valve Body Material	Ductile Iron QT450 Material
size	DN40-DN1200 1.5 "-48"	Warranty	18 Months

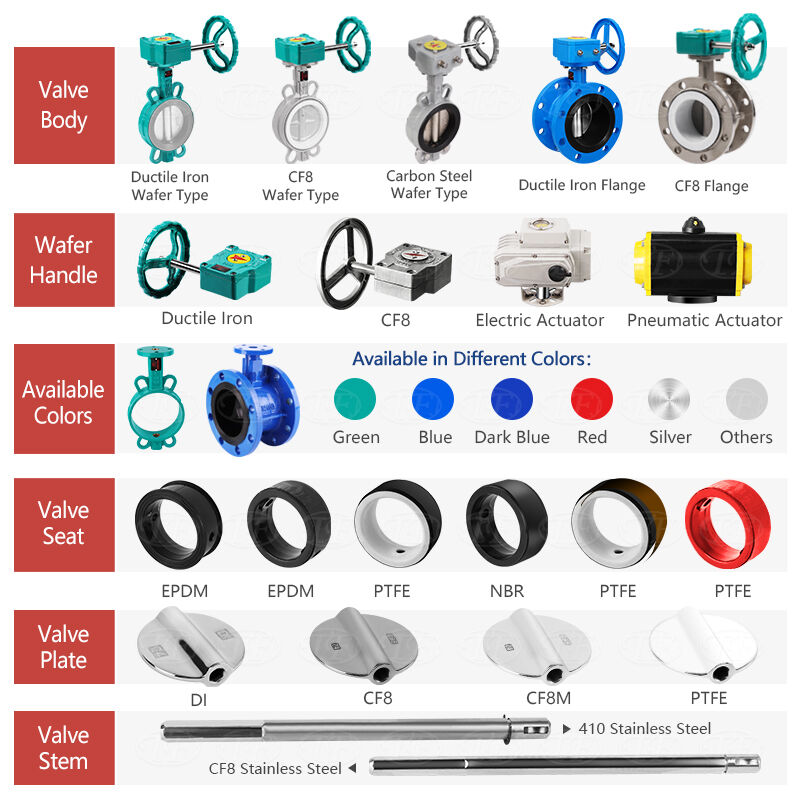

Valve Body Material	Ductile Iron QT450 Material	Disc	Stainless Steel CF8 SS304
Valve Stem	Stainless Steel CF8 SS304	Seat	EPDM / PTFE / NBR
Connection	wafer-type	Nominal pressure	PN10 PN16 PN25 1.0MPa 1.6MPa Class150
