It adopts a wafer-type connection structure with no flanges on both sides of the valve body. Clamped directly between two pipeline flanges via long bolts, it greatly reduces the required installation space while lowering the overall valve weight and transportation costs. The valve body is made of ductile iron QT450, cast by coated sand process, featuring a robust and pressure-resistant structure with no easy deformation. It can reach a nominal pressure of PN16, fully meeting the requirements of medium and low-pressure working conditions. The valve stem is made of stainless steel and supported by 4 oil-proof bearings to enhance operational stability, and it also has excellent corrosion resistance. A multi-seal structure is equipped at the shaft hole to ensure reliable axial sealing without leakage. It is compatible with various corrosive and non-corrosive media such as water, oil products, air, low-pressure gas, sewage, acid and alkali media, with a temperature range of -10℃ to 120℃. It is widely used in building water supply and drainage, municipal engineering, HVAC, fire protection systems, industrial circulating cooling water, food and pharmaceutical, petrochemical and other fields.
Applicable Medium |
water，oil |
Flowing Medium |
water，oil |
Interface Size |
DN40-DN300 |
Structure |
Butterfly |
Media Temperature |
Low Temperature, Medium Temperature, Normal Temperature |
Place of Origin |
Tianjin, China |
Power |
Manual |
Customization Supported |
OEM, ODM, OBM |
Brand |
TF |
Model (Number) |
D71X-10/16Q |
Size |
DN40-DN300 1.5 "-12" |
Warranty Period |
18 Months |
Pressure |
PN10 PN16 PN25 1.0MPa 1.6MPa Class150 |
Applicable Medium |
Water |

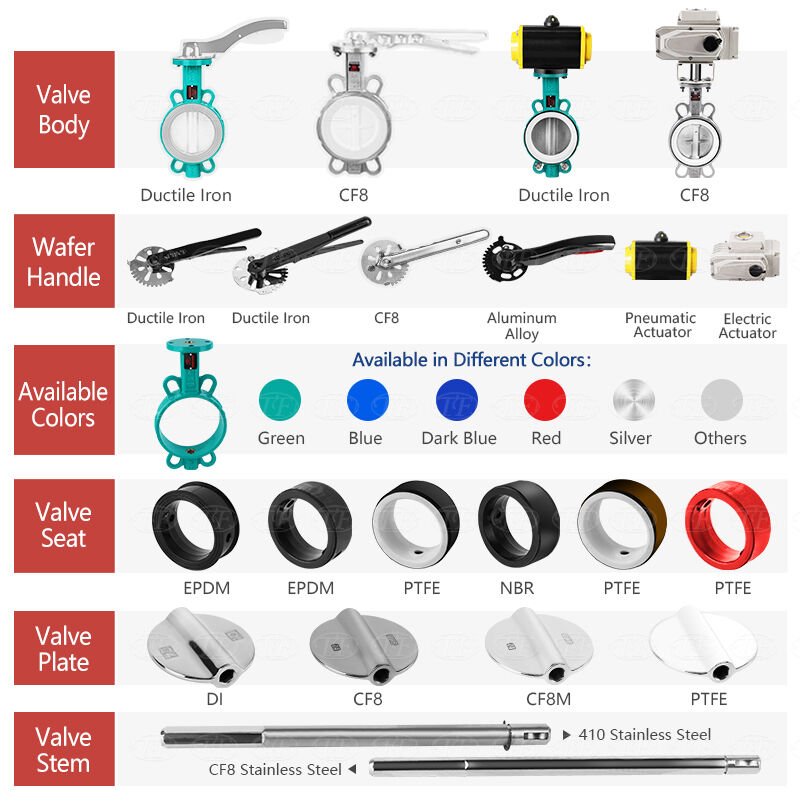

Valve Body Material |
Ductile Iron QT450 Material |
Standard |
GB BS DIN ANSI ASME |
Valve Stem |
CF8 SS304 CF8M SS316 |
Disc |
CF8 SS304 CF8M SS316 |
Connection |
Flange End Lug Type |
Seat |
NBR |
MOQ |
1 |
Certificate |
CE/IS09001/ISO14001/IS045001 |
Packaging and Shipping Information
Gross Weight per Unit Product |
10,000 Kilograms (or 10,000 kg) |
Package Size per Unit |
15 x 7 x 10 Centimeters (or 15×7×10 cm) |
