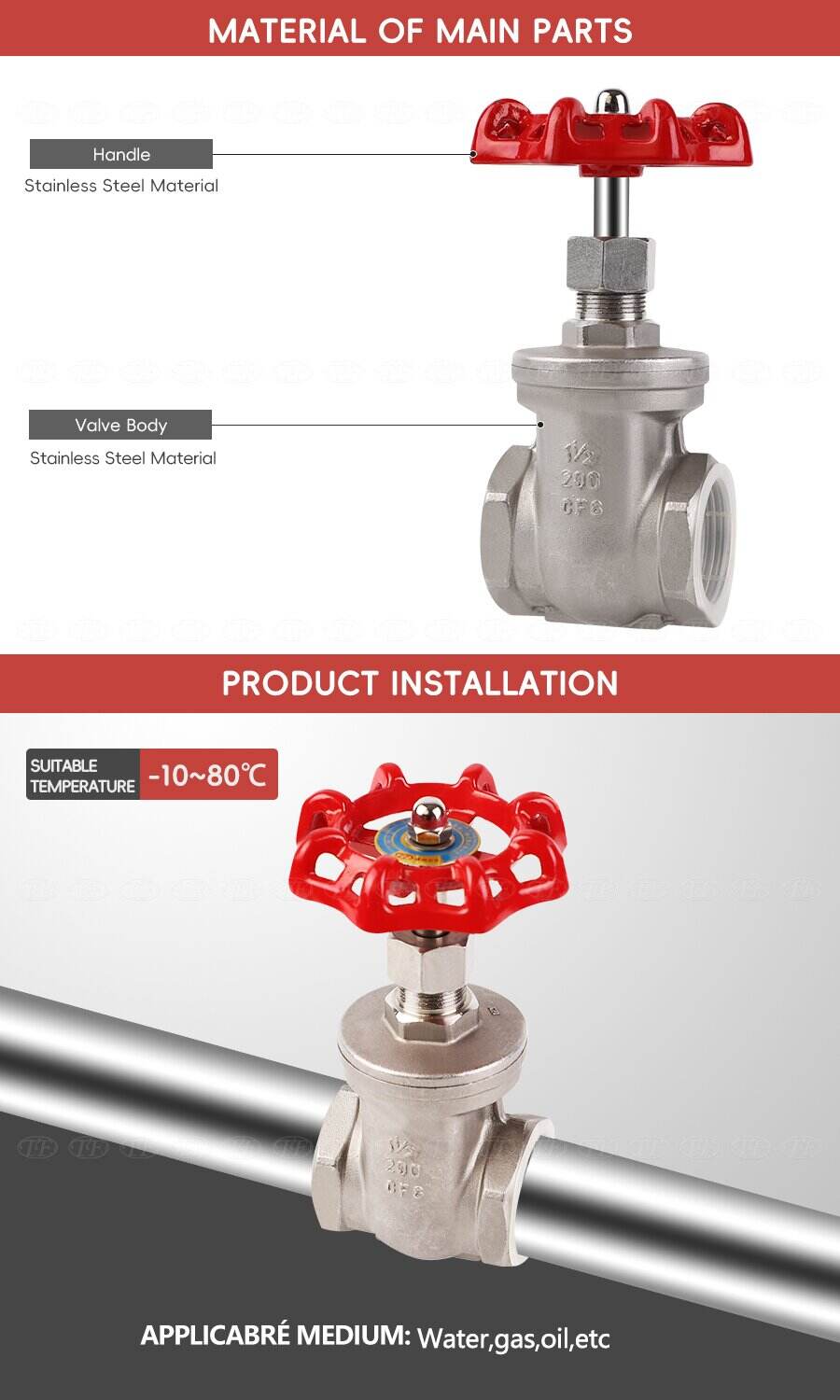

Made of genuine 304 food-grade stainless steel with chromium content ≥18% and nickel content ≥8%, it boasts excellent corrosion resistance. Adopting precision threaded connection, it requires no welding and is compatible with universal thread specifications such as G/BSP/NPT, matching various pipeline interfaces seamlessly. It is suitable for multiple media including water, steam, oil products and weak acid-alkali solutions, with a working pressure range of 0.6MPa~1.6MPa (for regular specifications). It meets the application requirements under different working conditions, features high versatility and reduces users' selection costs.
Applicable Medium |
Water |
Flowing Medium |
Water |
Interface Size |
DN50-DN300 |
Structure |
Gate Valve |
Media Temperature |
Low Temperature, Medium Temperature, Normal Temperature |
Place of Origin |
Tianjin, China |
Structure |
Gate |
Customization Supported |
OEM, ODM, OBM |
Brand |
TF |
Model (Number) |
/ |
medium temperature |
T<80 |
Warranty Period |
18 Months |
/ |
/ |
Applicable Medium |
Water |

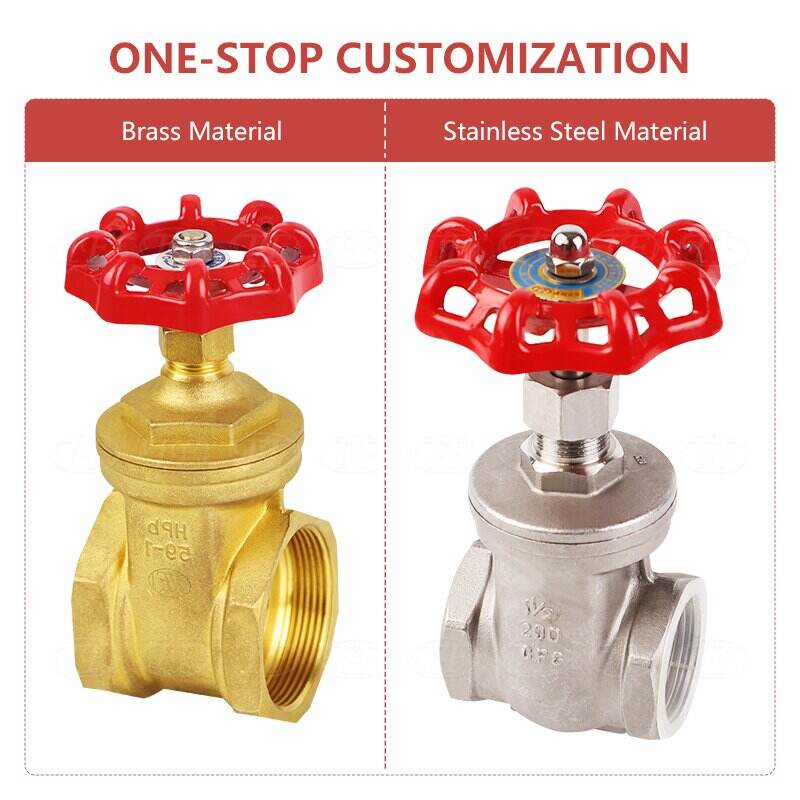

Valve Body Material |
CF8 SS304 CF8M SS316 |
Standard |
GB BS DIN ANSI ASME |
Valve Stem |
CF8 SS304 CF8M SS316 |
Disc |
CF8 SS304 CF8M SS316 |
Connection |
thread |
Seat |
/ |
|
|
Certificate |
CE IS09001 ISO14001 IS045001 |
Packaging and Shipping Information
Gross Weight per Unit Product |
10,000 Kilograms (or 10,000 kg) |
Package Size per Unit |
15 x 7 x 10 Centimeters (or 15×7×10 cm) |
MOQ:1
