Ductile Iron Manual Handle Wafer Butterfly Valve EPDM Blue D71X-16Q

Ductile Iron Manual Handle Wafer Butterfly Valve EPDM Blue D71X-16Q

Overview
Recommended Products

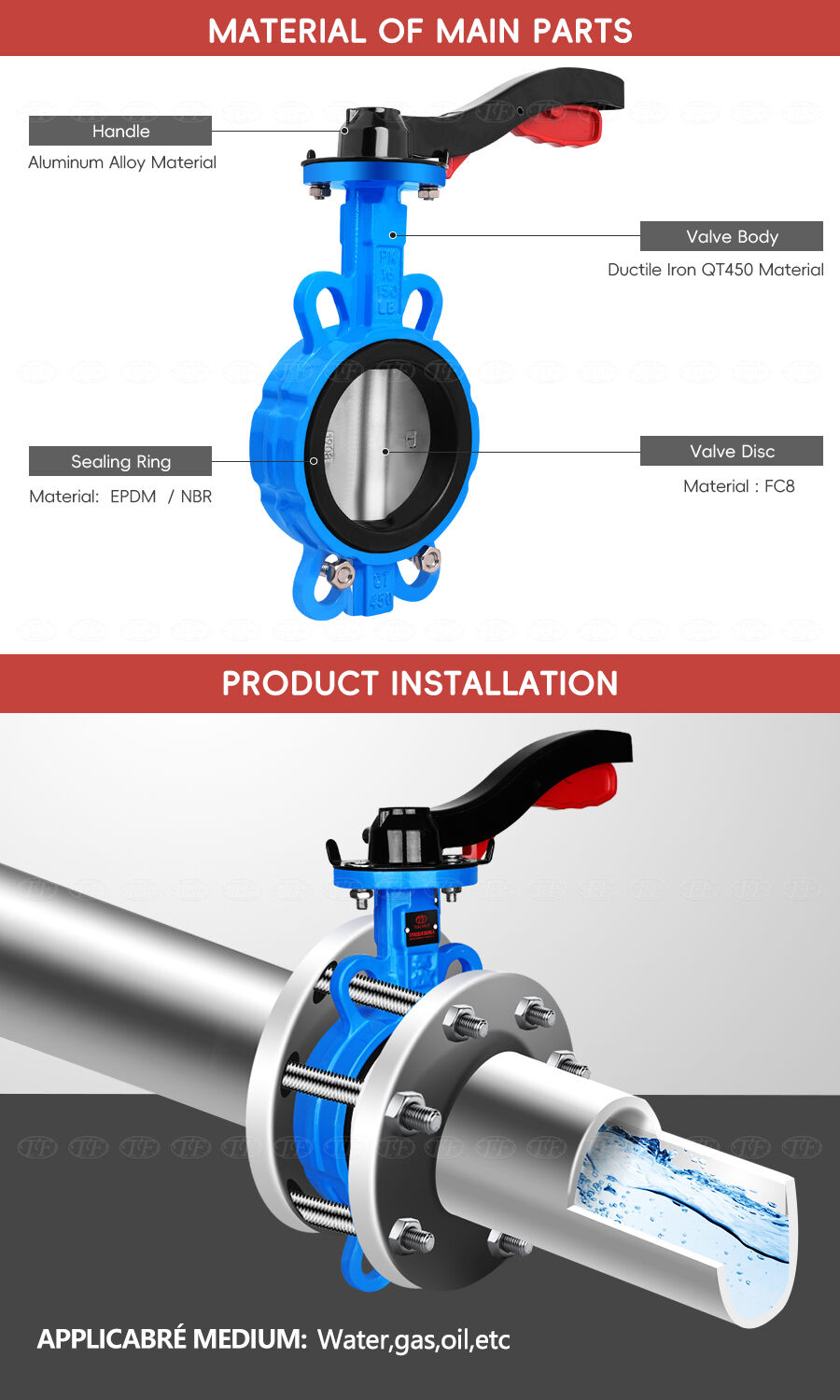

It adopts a wafer-type connection structure with no flanges on both sides of the valve body. Clamped directly between two pipeline flanges via long bolts, it greatly reduces the required installation space while lowering the overall valve weight and transportation costs. The valve body is made of ductile iron QT450, cast by coated sand process, featuring a robust and pressure-resistant structure with no easy deformation. It can reach a nominal pressure of PN16, fully meeting the requirements of medium and low-pressure working conditions. The valve stem is made of stainless steel and supported by 4 oil-proof bearings to enhance operational stability, and it also has excellent corrosion resistance. A multi-seal structure is equipped at the shaft hole to ensure reliable axial sealing without leakage. It is compatible with various corrosive and non-corrosive media such as water, oil products, air, low-pressure gas, sewage, acid and alkali media, with a temperature range of -10℃ to 120℃. It is widely used in building water supply and drainage, municipal engineering, HVAC, fire protection systems, industrial circulating cooling water, food and pharmaceutical, petrochemical and other fields.


Applicable Medium	water，oil	Flowing Medium	water，oil
Interface Size	DN40-DN300	Structure	Butterfly
Media Temperature	Low Temperature, Medium Temperature, Normal Temperature	Place of Origin	Tianjin, China
Power	Manual	Customization Supported	OEM, ODM, OBM
Brand	TF	Model (Number)	D71X-10/16Q
Size	DN40-DN300 1.5 "-12"	Warranty Period	18 Months
Pressure	PN10 PN16 PN25 1.0MPa 1.6MPa Class150	Applicable Medium	Water

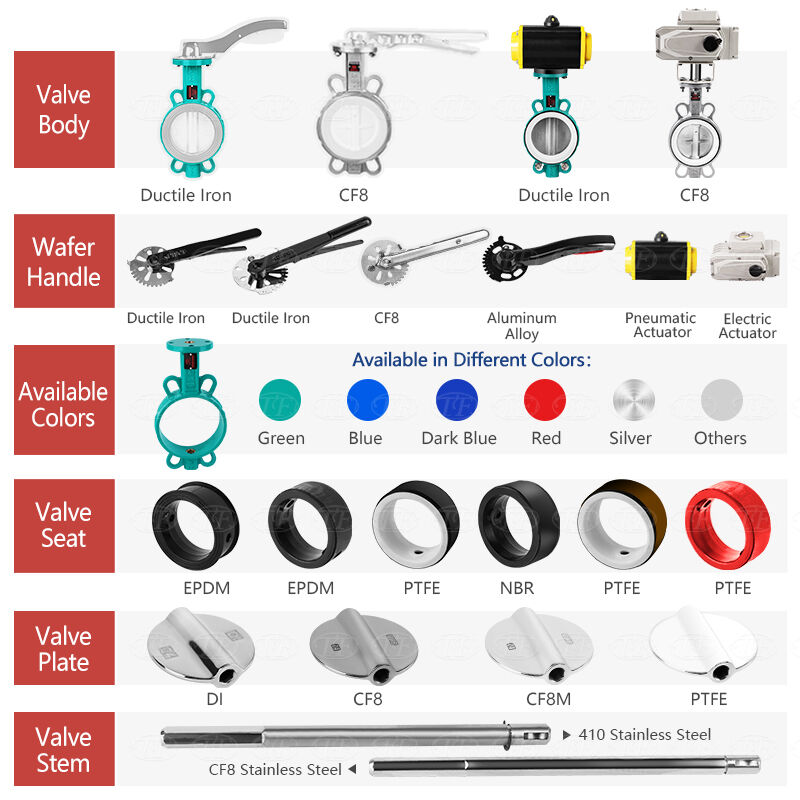

Valve Body Material	Ductile Iron QT450 Material	Standard	GB BS DIN ANSI ASME
Valve Stem	CF8 SS304 CF8M SS316	Disc	CF8 SS304 CF8M SS316
Connection	Flange End Lug Type	Seat	EPDM
MOQ	1	Certificate	CE/IS09001/ISO14001/IS045001
