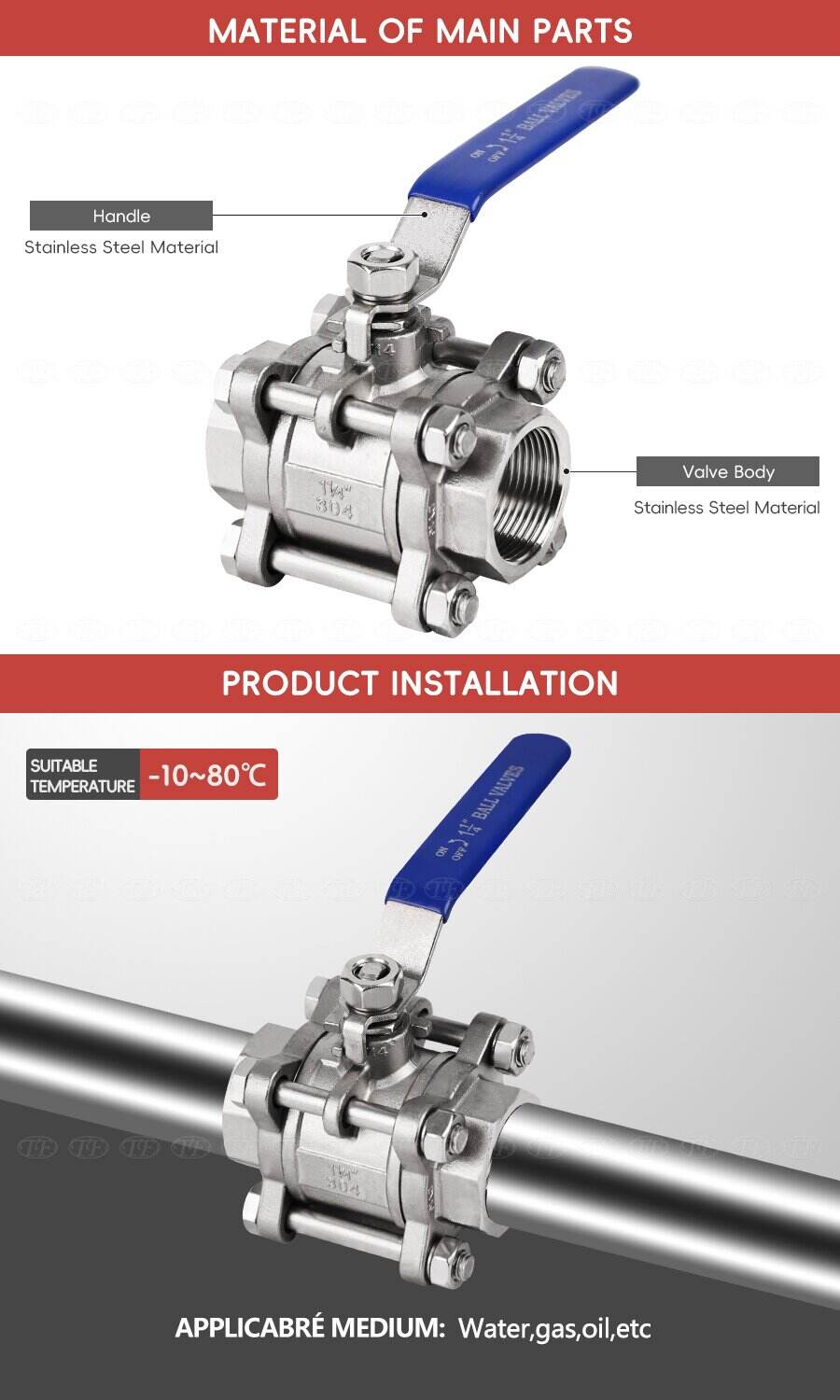

Material: 304 stainless steel. It boasts excellent corrosion and weather resistance, delivering maximum safety and durability. Adopting a three-piece split structure composed of left valve body, middle valve seat & ball assembly and right valve body and fastened by bolts, it has revolutionary maintenance advantages over one-piece and two-piece ball valves. It adopts standard female thread (NPT/BSPT) connection, without the need for complex welding or flange connection tools, making the installation process simple and efficient and enabling quick and accurate docking with pipelines. A 90° rotation of the valve stem can realize full opening or closing with low operating torque and fast response. The precision-machined ball ensures stable rotation and adjustment, which can accurately control the medium flow and meet the high flow precision requirements of technological processes such as food processing and chemical dosing.
Applicable Medium |
Water |
Flowing Medium |
Acid,Base |
Interface Size |
DN15-DN100 |
Structure |
BALL |
Media Temperature |
Low Temperature, Medium Temperature, Normal Temperature |
Place of Origin |
Tianjin, China |
Working Temperature |
0~80°C |
Customization Supported |
OEM, ODM |
Brand |
TF |
Model (Number) |
/ |
Valve Name |
Manual Ball Valve |
Warranty Period |
18 Months |
Valve body material |
Stainless Steel Material |
Valve Body |
CF8 SS304 CF8M |
Valve Stem |
CF8 SS304 CF8M |
Standard or Nonstandard |
custom |
Packaging and Shipping Information
Gross Weight per Unit Product |
10,000 Kilograms (or 10,000 kg) |
Package Size per Unit |
15 x 7 x 10 Centimeters (or 15×7×10 cm) |
MOQ:1
