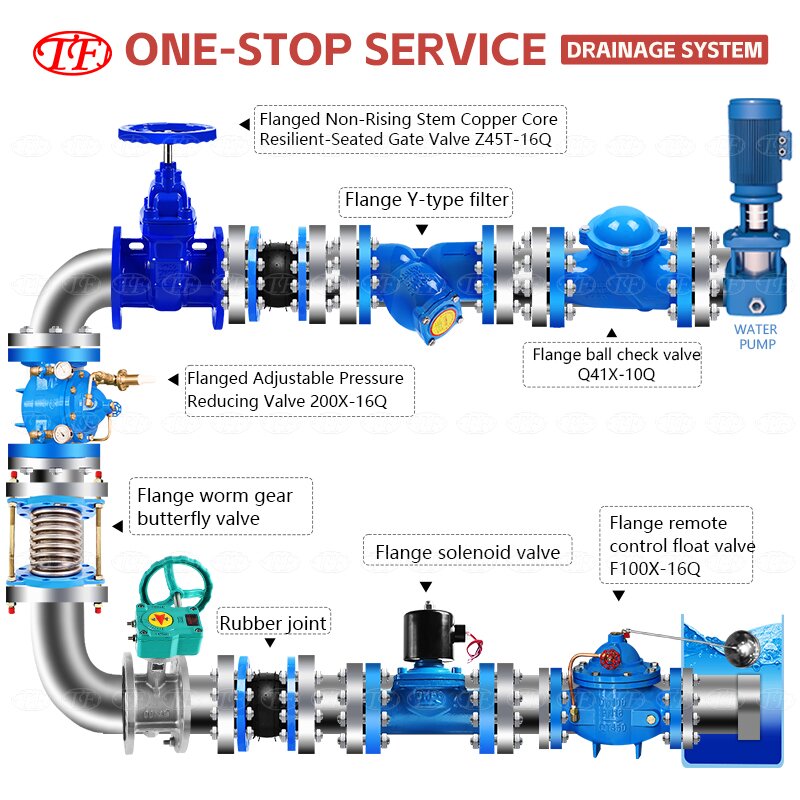

Flanged Non-Rising Stem Copper Core Protective Gate Valve Z45T-16Q boasts core advantages of space-saving non-rising stem, excellent sealing performance of copper core, wide adaptability of protective design, and low resistance & easy maintenance. It is suitable for water supply and drainage, civil air defense and other scenarios, featuring flexible installation, durability and safety. With a nominal pressure of 1.6MPa and a maximum applicable temperature of ≤120℃, it is widely used in water supply and drainage, urban construction, metallurgy, electric power, civil air defense engineering, etc., and is especially suitable for scenarios with strict requirements on sealing and space such as underground pipelines, direct drinking water projects and fire pipelines.
Applicable Medium |
Water |
Flowing Medium |
WOG ，Steam |
Interface Size |
DN40-1200 |
Structure |
Gate Valve |
Media Temperature |
Low Temperature, Medium Temperature, Normal Temperature |
Place of Origin |
Tianjin, China |
Structure |
Magnetic Lock Gate Valve |
Customization Supported |
OEM, ODM, OBM |
Brand |
TF |
Model (Number) |
Z45T-16Q/25Q |
Maximum number of padlocks |
2, 3, 1, 4 |
Warranty Period |
18 Months |
Nominal Pressure |
PN16 PN25 1.6MPa 2.5MPa Class150 |
Applicable Medium |
WOG ，Steam |

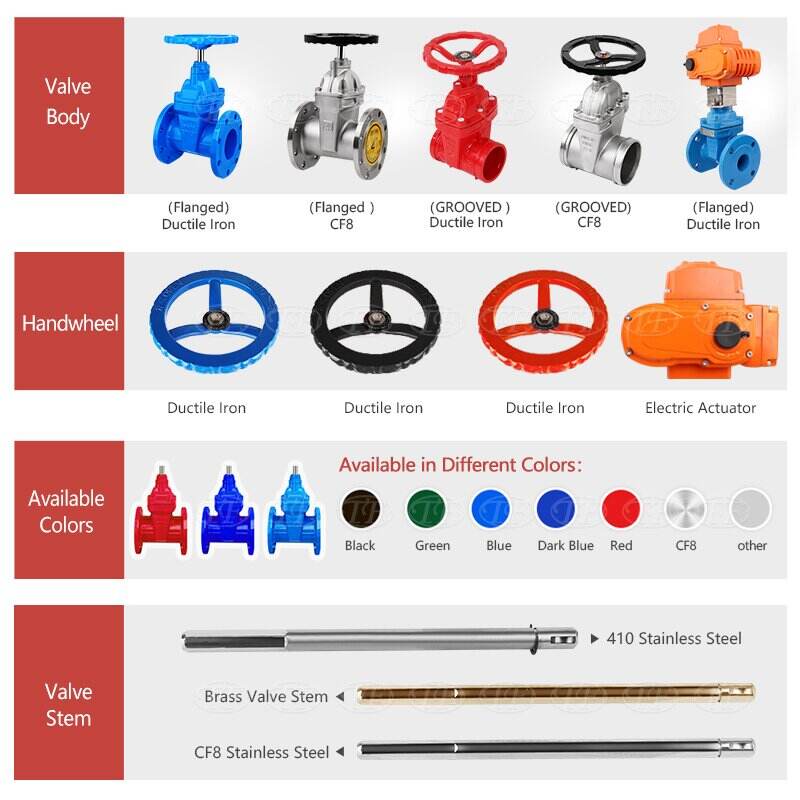

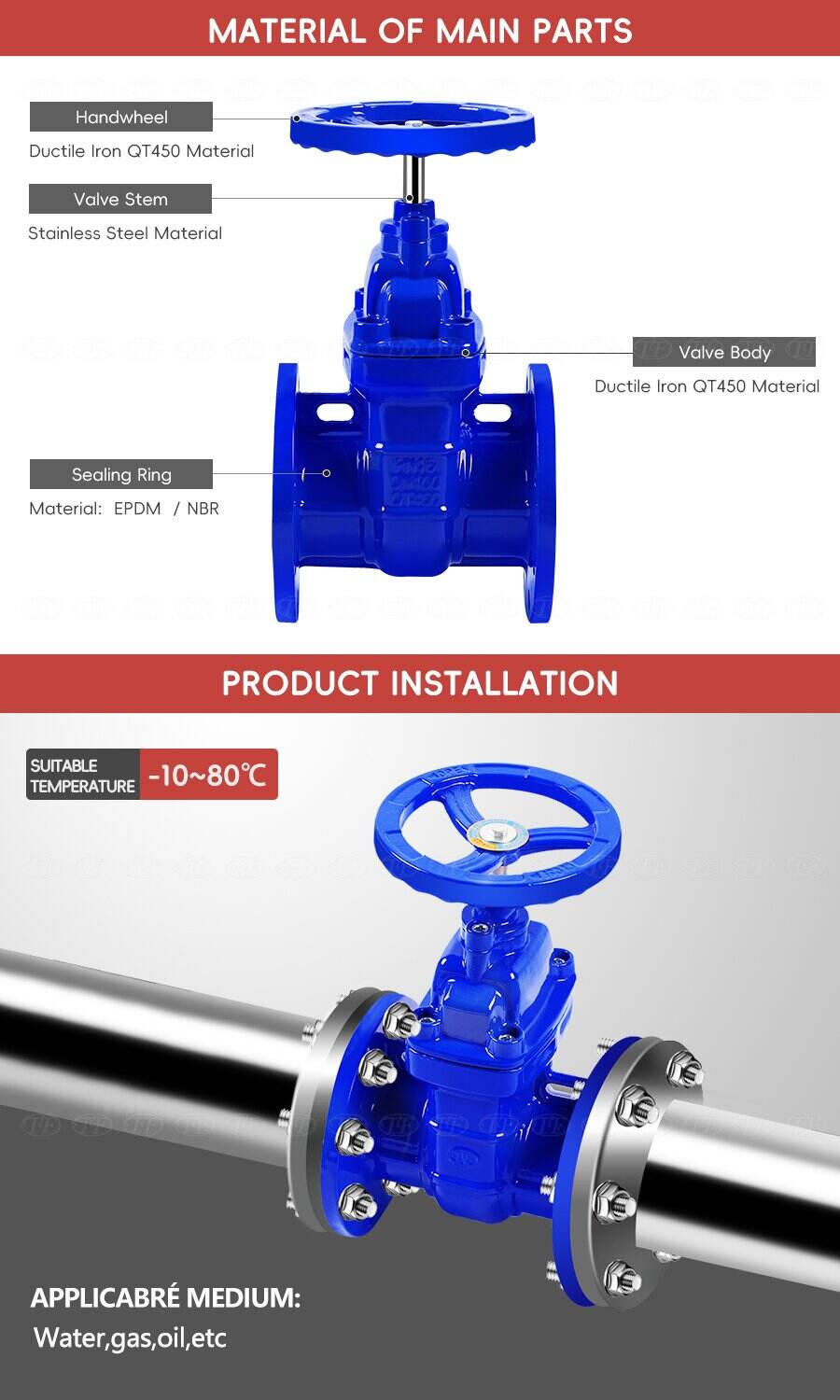

Valve Body Material |
Ductile Iron QT450 Material |
Standard |
Ductile Iron QT450 Material |
Valve Stem |
SS420 2 cr13/CF8 SS304 CF8M SS316 |
Disc |
EPDM |
Connectio |
Flanged End |
Seat |
DN40-1200 |
Nominal Pressure |
1.6MPa |
Seal |
Resilient Sealing |
Packaging and Shipping Information
Gross Weight per Unit Product |
10,000 Kilograms (or 10,000 kg) |
Package Size per Unit |
15 x 7 x 10 Centimeters (or 15×7×10 cm) |
MOQ:1
